The Bowman L Series is a versatile XRF instrument with a large sample chamber (22″ x 24″ x 13″) and 10″ x 10″ X-Y stage travel. It accommodates large parts or multiple samples and includes a 4-position collimator assembly, variable focus camera, and programmable X-Y stage. The chamber Z-height is 10″ (or 13″ without the stage). It features an SDD detector and a long-life micro-focus X-ray tube.
The M Series delivers high-performance plating thickness measurement for the smallest features, using advanced poly-capillary optics that focus the x-ray beam down to 7.5μm FWHM. It includes a 140x high-magnification camera with enhanced digital zoom, paired with a secondary macro camera for easy navigation. The high-precision programmable X-Y stage enables multi-point measurements, with automatic pattern recognition and 2D mapping for surface topography analysis. The standard setup features 15μm optics, a high-resolution LSDD detector, and a programmable X-Y stage. Due to its close focal distance, samples must be flat.
The O Series combines high performance and ultra-small x-ray spot size (80μm FWHM) using poly-capillary optics, which maximize x-ray flux for higher sensitivity and faster testing of small components or thin coatings. Unlike traditional collimators, this system retains nearly 100% of the tube flux, ensuring superior repeatability in shorter test times. It features a high-resolution SDD detector, 55x video magnification, 7x digital zoom, and a programmable X-Y stage. Due to its close focal distance, samples must be flat. Now available with an extended stage option for greater flexibility.
XRF P Series allows for the measurement of various sample sizes, shapes, and quantities. Its high-precision programmable X-Y stage enables easy operation through software, allowing users to move to measurement locations with a mouse or create multi-point measurement programs with a single click. This optimizes testing for critical areas and larger sample volumes. The standard configuration includes a 4-position collimator assembly, a variable-focus camera for measuring recessed areas, an SDD detector, and a long-life micro-focus X-ray tube. Collimators and focal distances can be customized to suit specific applications.

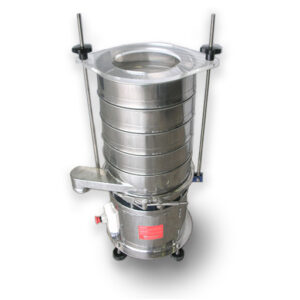

The ZEUS Circular Sieve Shaker is suitable for large production volumes in industrial sieving. It can be used for separation processes for solids in a liquid, for the separation of different granulometries within the same product, in safety sieving for the elimination of foreign bodies, for the homogenization of particles.
