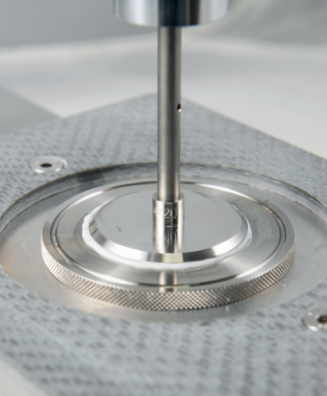

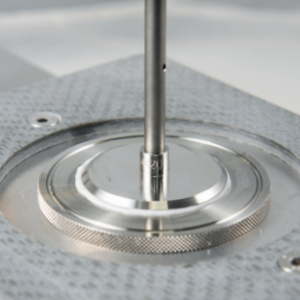

VISCOMETER CONE-PLATE RM 100 CP-2000 PLUS – LAMY

Brand:

Category: Tags: , ,
Tags: , ,

The ideal solution for precise viscosity measurements on limited samples – RM 100 CP-2000 PLUS offers outstanding performance, accurate temperature control, a wide measuring range, and a modern touchscreen interface. Perfect for R&D and quality control across various industries.

FEATURES & BENEFITS

  • Designed specifically for cone-plate measurements
  • Quick attachment with AC265 coupling
  • Speed or shear rate control
  • Wide range of speed and torque
  • Direct control of temperature unit
  • Integrated programming software
  • Time-to-stop measurement setting
  • User mode and lock mode
  • Data logging and USB export
  • Direct torque display
  • Integrated temperature probe
  • Printer connectivity
  • Compatible with RheoTex software
  • Viscosity limits display based on rotor and speed

MODELS & SPECIFICATIONS

Model Device Name Temperature Range Viscosity Range (mPa.s)
N170000 RM 100 CP-2000 PLUS VISCOMETER AIR PELTIER +10°C to +70°C 1 to 190,000,000 (using MS CP spindle – p84)
N170100 RM 100 CP-2000 PLUS VISCOMETER AIR PELTIER WITH PROGRAMMER* +10°C to +70°C
N170200 RM 100 CP-2000 PLUS VISCOMETER LIQUID PELTIER** -20°C to +100°C
N170300 RM 100 CP-2000 PLUS VISCOMETER LIQUID PELTIER** WITH PROGRAMMER* -20°C to +100°C
N170400 RM 100 CP-2000 PLUS VISCOMETER Ambient to +300°C
N170500 RM 100 CP-2000 PLUS VISCOMETER WITH PROGRAMMER* Ambient to +300°C
N170800 RM 100 CP-2000 PLUS VISCOMETER AIR PELTIER 0°C to +150°C
N170900 RM 100 CP-2000 PLUS VISCOMETER AIR PELTIER WITH PROGRAMMER* 0°C to +150°C

TECHNICAL SPECIFICATIONS

  • Device type: Springless rotational viscometer with 7-inch touchscreen
  • Rotational speed: Unlimited, from 0.3 to 1500 rpm
  • Torque range: 0.05 to 30 mNm
  • Temperature sensor: PT100 probe, measurement range -50°C to +300°C
  • Accuracy: ±1% of full scale
  • Repeatability: ±0.2%
  • Display parameters:
    • Viscosity (cP / mPa.s / Poise / Pa.s)
    • Rotational speed
    • Shear rate
    • Torque (% or mNm)
    • Shear stress
    • Time
    • Temperature
  • Supported languages: French / English / Russian / Spanish / Turkish / German / Italian / Korean / Portuguese / Ukrainian
  • Power supply: 90–240 VAC, 50/60 Hz
  • Analog output: 4–20 mA
  • Computer connections: RS232, USB, Ethernet
  • Printer connection: USB Host, PCL compatible
  • Compatible measuring systems: MS-CP, MS-PP* (*with accessory ref. 100047)
  • Accessories & options:
    • Barcode reader
    • Touchscreen protective film
    • Standard viscosity oil
    • Printer
    • RheoTex software
    • Protective cover (Ref: 121019)
