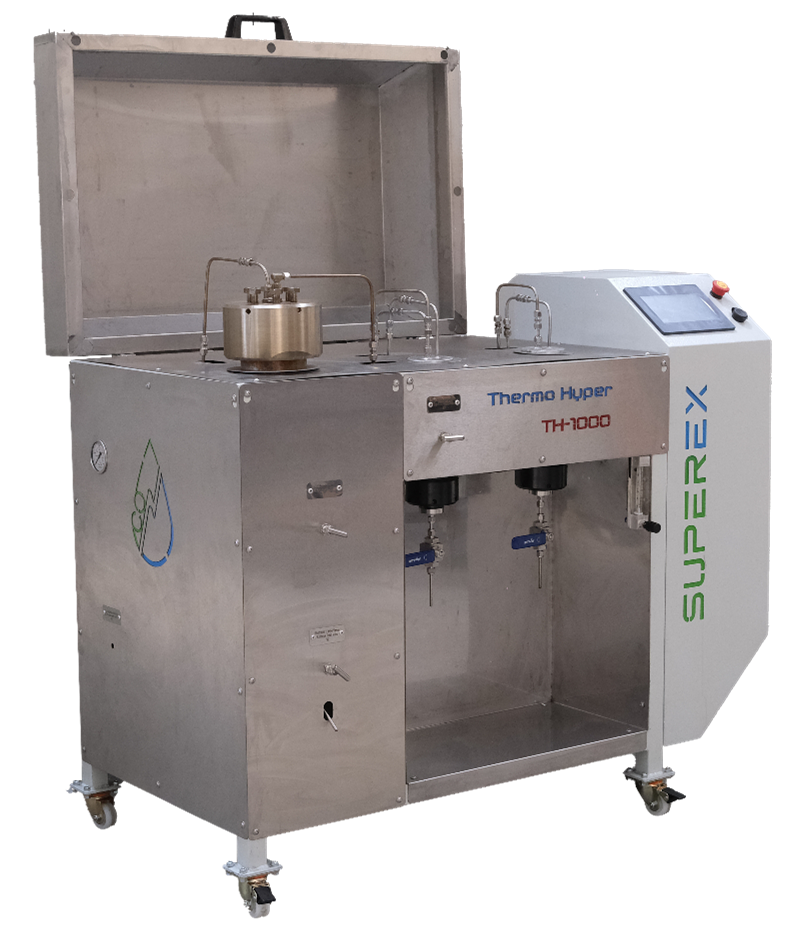

SUPERCRITICAL EXTRACTION SYSTEM TH-1000 – SUPEREX

The Supercritical CO₂ Extraction System is designed for industrial production with 300L or 600L extraction vessels, a maximum pressure of 345 bar, and a temperature of 70°C. The system is equipped with three 35L separators, precise pressure and temperature control, and a high CO₂ flow rate of 30 kg/min to optimize efficiency. With a fully automatic CO₂ recirculation system, a high-precision PID controller, and a heat pump with COP = 6, the system ensures clean extraction, energy efficiency, and environmental sustainability.

The subcritical water extraction system is designed to efficiently and environmentally friendly extract natural compounds. Equipped with an extraction vessel and two separators, the system operates at high temperature and pressure, allowing for the effective extraction of phenolic compounds without the need for chemical solvents. All surfaces in contact with food are made of stainless steel, ensuring hygiene and preventing microbial attachment. The system features PID temperature control, automatic pressure regulation, and a back pressure regulator, ensuring precise and stable extraction. Additionally, users can integrate a supercritical CO₂ module to expand the extraction capability for high-value compounds.

The Supercritical CO₂ Extraction System P-1000 offers an advanced solution for industrial production, enabling efficient and safe extraction of natural compounds. Designed with modern technology, the system operates automatically, optimizes energy use, and ensures high-quality extraction. Its precise temperature and pressure control technology allow for the processing of various raw materials, including those with high moisture content. This is an ideal choice for the pharmaceutical, food, and cosmetic industries, providing a clean and sustainable extraction process.

The SUPEREX SC-2000 extraction system is optimally designed for supercritical CO₂ extraction, making it particularly suitable for the food, pharmaceutical, and cosmetic industries. Equipped with a 2-liter extractor column and an additional 0.5-liter column, the system operates at a maximum pressure of 345 bar and temperatures up to 70°C. All surfaces in contact with the material are made of stainless steel, ensuring hygiene and preventing microbial attachment. Notably, the system features three separators, two of which allow pressure and temperature control, enhancing the efficiency of compound recovery. It also integrates PID algorithm-based temperature control, a digital automatic back pressure regulator (BPR), and CO₂ recycling and recovery capabilities, ensuring cost-effectiveness and high extraction efficiency. With its smart design, sample loading and cleaning are effortless, supporting optimal aroma extraction from liquid samples.
