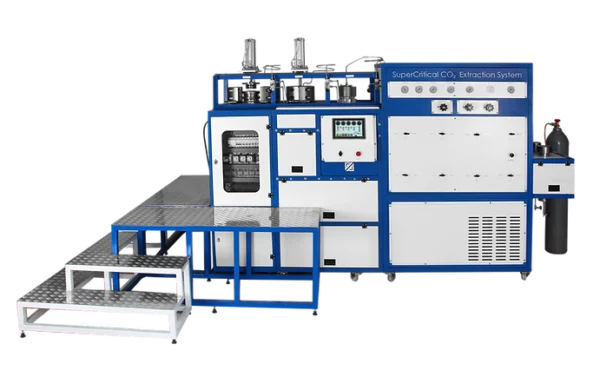

SUPERCRITICAL CO₂ EXTRACTION SYSTEM P-20-SUPEREX

Origin: Turkey

Brand:

Category:

The supercritical CO2 extraction system P-20 offers an optimal extraction solution for the industrial sector. This modern extraction column system combines outstanding performance with advanced technology. It features an intelligent design with automatic temperature and pressure control, along with a CO2 recycling system that achieves up to 95% efficiency, helping reduce operating costs and protect the environment. With fast processing speeds and fully automated operation, it is the perfect choice for businesses looking to enhance production efficiency and optimize product quality.

MODEL : P20

SPECIFICATIONS

  • 10 Lt or 2×10 L volume extraction column
  • Special design for efficient industrial production
  • Three separators, each with a volume of 4 L
  • Two separators are pressure and temperature controlled
  • Separators feature interchangeable nozzles for cyclone flow or liquid retention
  • Maximum operating pressure: 345 bar
  • Maximum operating temperature: 70°C
  • High-speed CO2 flow (3 kg/min)

Solvent Distribution:

  • Auxiliary solvent distribution system (1 L/min)
  • Fully automatic pressure increase, solvent feeding, and pressure reduction
  • Fully automatic back pressure regulators
  • Fully adaptive automatic control of pressure and CO2 flow

Control temperature:

  • High precision PID algorithm for temperature control
  • Up to 95% efficiency for reuse with fully automatic CO2 liquefaction and recycling
  • High energy-efficient heat pump (COP = 6)
