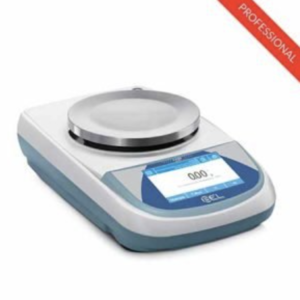

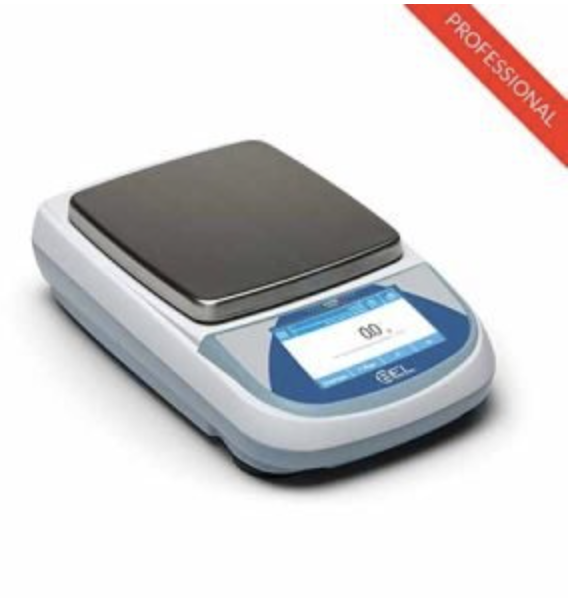

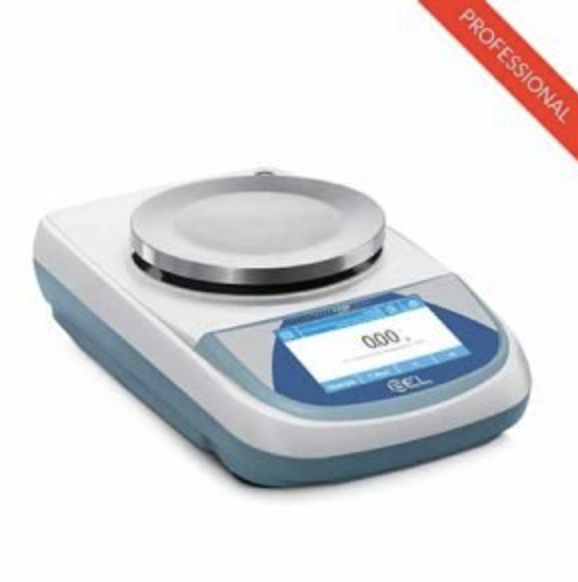

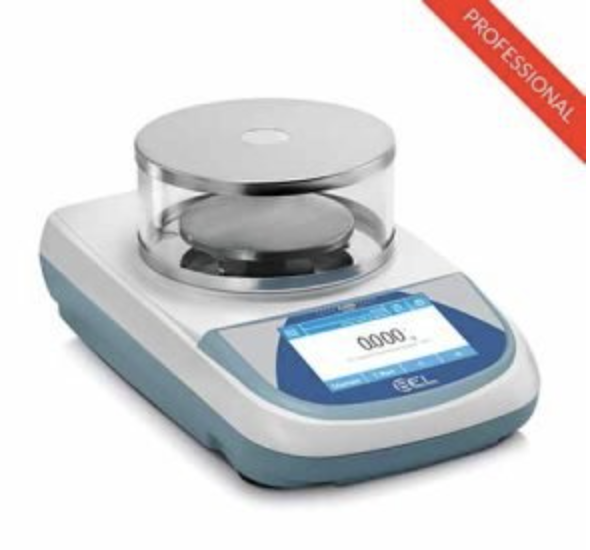

M5 precision balances are the most innovative and advanced series made by BEL Engineering. Equipped with large 5’’ color touch screen display, it gives an user-friendly access to all the balance’s advanced applications and internal databases.
The user has easy and intuitive access to all the functions thanks to the icon-driven menus. This means more efficiency, productivity and interactivity.
A double case structure protects the heart of the balance: an aluminum inner case and a composite plastic external case.
With resolution from 0,001g to 0,1g this serie offers a wide choice of models for many application with the simplicity of a touch screen interface.
The many on-board functions already included, up to 6 operating languages, the large 5’’ inch display and the RS232 serial output close the circle of a complete product, reliable and truly convenient.
| Product info | M5-L303i | M5-M523i | M5-M723i |
| Capacity (Max) | 310g | 520g | 720g |
| Resolution (D) | 0,001g | 0,001g | 0,001g |
| Calibration | Automatic internal | Automatic internal | Automatic internal |
| Pan size | Ø 110mm | Ø 110mm | Ø 110mm |
| Repeatibility | 0,6mg | 0,001g | 0,001g |
| Linearity | ± 0,003g | ± 0,002g | ± 0,002g |
| Respone time (SEC.) | ≤3 | ≤2 | ≤2 |
| SKU | BL0420 | BL0422 | BL0423 |
