K500 SERIES
The Motic K500-Series line of stereomicroscopes provides you the best performance and versatility
expected by your standards. Employing a Common Main Objective (CMO) infinity optical system, the Motic K-500 Series stereo microscope produce and showcase crisp, distortion-free, 3-Dimensional images. The CMO and infinity combination lower the fatigue of long term usage to ensure viewing is no longer a task in
itself.
Infinity optics with 5-step magnifications of 6.4X, I0X. 16X. 25X and 40X, with 1 objective and 10X
Super Widefield Eyepieces.
Stereomicroscope Specifications
|

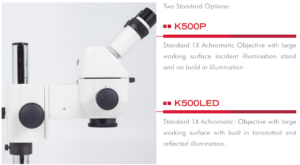

Feature |
K500LED |
K500P |
| Optical system | Common Main Objective (CMO) Infinity optical system | |
| Observation tube | Binocular head | |
| Inclination | 45° inclined | |
| Interpupillary distance | 54-76mm | |
| Diopter adjustment | On both tubes, +/- 5 diopter | |
| Eyepieces | Widefield WF10X/23mm | |
| Objectives system | 5-position drum magnification changer | |
| Objectives | 6,4X, 10X, 16X, 25X, 40X | |
| Working distance | 89mm | |
| Stand type | Pole type stand with transmitted illumination | Pole type plain stand |
| Head holder | For Ø32mm column with incident illumination | For Ø32mm column |
| Focus mechanism | Coarse focusing system with tension adjustment | |
| Focusing stroke | 49mm | |
| Incident illumination | 3W LED with intensity control |
/ |
| Transmitted illumination | 3W LED with intensity control |
/ |
| Transformer | Internal |
/ |
| Power supply | 100-240V (CE) |
/ |
| Accessories included | Dust cover, black/white and frosted stage plates | Dust cover, black/white |
| Dimensions LxWxH | 329x277x434mm | 329x277x399mm |
| Base | 329x277mm | |
| Column/Arm | Height 295mm, Ø32mm | |
| Net weight | 5.9kg | 5.8kg |
