Digital Microscope – Motic

GET READY TO EXPLORE THE FULL
POTENTIAL OF YOUR MICROSCOPE!

In the Motic Digital Professional Microscope selection, we have lined up our top range of digital microscopes suitable for any application and working area. Our range contains biological and stereomicroscopes with digital and/or analogue output.

Whether you are a teacher at a University, a Lab Technician, a Researcher, working in the Industrial sector or a devoted microscopist, in this catalogue you will definitely find something suitable, for your application and within your budget. Discover the endless possibilities and benefits of a digital microscope.

Our 5-Year Limited warranty for the microscope and the 2-Year Limited warranty for the camera, is backed by a complete parts inventory that assures availability beyond the two year warranty period.

Motic’s aim is to provide you with a complete package that will allow you to get immediately started.

Have a look at the several different digital microscopes and software solutions that we have to offer.

BA210 DIGITAL

All-in-one

The BA210 Digital is the perfect digital microscope as a teaching, training and analysis station. The complete closed system ensures no hassle with adapters or risk of getting dust on any of the optical parts. A 3.0 Megapixel CMOS chip is integrated in the head of the BA210 Digital providing crisp and clear images.

The USB 2.0 output ensures fast data streaming to the computer. Motic also includes the basic but sophisticated Motic Images Plus 2.0 Multi Language software, allowing you to share, capture, archive, make video recordings and accurate measurements of your samples.

• Binocular head Siedentopf type, 30∘ inclined with built-in digital camera CMOS 1/2∘ chip
• $3MP-2048x1536$ pixels with USB2.0 output
• Widefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces
• Reversed quadruple revolving nosepiece
• CCIS® EF-N Plan Achromatic objectives EF-N PL 4X, 10X, 40X S, 100X S-oil
• Coaxial coarse and fine focusing system with tension adjustment
• Built in low position coaxial mechanical stage (Right-hand control)
• Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slot
• Quartz halogen illumination 6V/30W with intensity control
• Motic Images Plus 2.0 for PC and MAC
• Calibration slide

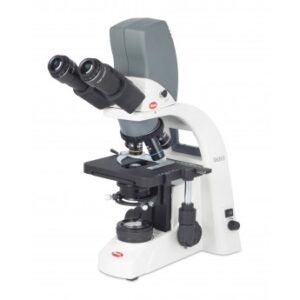

BA310 DIGITAL

Koehler illumination & 3.0 MP camera

The BA310 Digital is a professional solution for life science and medical applications demanding high optical quality. With a digital camera of 3.0 Mpixels integrated in the head, the BA310 digital, is a powerful
digital imaging solution.

The high resolution chip and the full Koehler configuration, provides superb and high contrast images. With the BA310 Digital, Motic also supplies the Motic Images Plus 2.0 Multi Language software, allowing you to analyse your samples more in depth.

• Binocular head Siedentopf type, 30° inclined with built-in digital camera CMOS 1/2″ chip
• 3MP – 2048×1536 pixels with USB2.0 output
• Widefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces
• Reversed quintuple revolving nosepiece
• CCIS® EF-N Plan Achromatic objectives EF-N PL 4X, 10X, 40X S, 100X S-oil
• Coaxial coarse and fine focusing system with tension adjustment
• Built in low position coaxial mechanical stage (Right-hand control)
• Focusable and centrable Abbe condenser N.A. 0.90 with iris diaphragm and slot
• Koehler illumination quartz halogen 6V/30W with intensity control
• Motic Images Plus 2.0 for PC and MAC

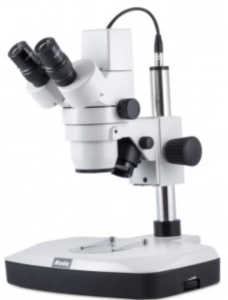

DMW143 FBGG

Multi-output stereo zoom microscope

This microscope has exactly the same optical specifications as the DM-143-FBGG, the only difference is that the integrated camera is different; it is a multi-output camera.

With the integrated multi-output camera, the options are endless. You can connect the microscope directly to the computer by using the USB 2.0 cable and analyze it with the included multi language Motic Images Plus 2.0 software. But you can also connect the microscope directly to a TV monitor via the S-Video cable or have a direct connection to the projector with the RCA cable. Anything is possible! Not only you can chose between one of the three outputs, you can also use all three of them simultaneously!

• Greenough zoom optical system
• Binocular head, 45∘45∘ inclined with built-in analogue/digital camera CCD 1/3∘1/3∘ chip
• $720x576$ resolution USB2.0
• Max. 550 TV lines resolution S-Video & RCA
• Widefield eyepiece WF10X/20mm
• 4:1 Zoom ratio, WD=80mm
• Magnification range: 1X-4X
• FBGG: Pole type stand with large working base
• Coarse focusing system with tension adjustment
• 12V/10W incident and transmitted halogen illumination with intensity control
• Motic Images Plus 2.0 for PC and MAC
• USB, S-Video & RCA cables
• Calibration slide
• Black/White and frosted glass stage plates

Multi-Output

Computer

Through the USB 2.0 cable you can connect the DMW-143-FBGG directly to your computer. By using the Motic Images Plus 2.0 Software, you can capture images, perform measurements and create videos, with just a few mouse clicks!

The Motic Images Plus 2.0 is an analysing software, which allows you to get the maximum information from the image and use all kinds of image enhancement tools to prepare your picture for reports and presentations.

Projector/Beamer

Connect the DMW-143-FBGG directly to your projector/beamer with the RCA or S-video cable, in order to share your images with a larger audience. Even when the images are enlarged by the projector, the DMW-143-FBGG will ensure that crisp, clear images are being displayed.

TV Monitor

Use the S-Video or RCA output of the DMW-143-FBGG to connect it directly to the TV monitor. With a resolution of 550 TV lines, even the finest details will be displayed.

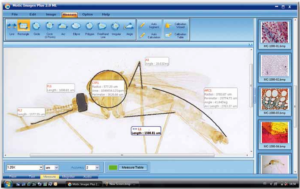

Motic Images Plus 2.0

The essence of Motic’s Image Analysis Software

The multi language image analysis software, Motic Images Plus 2.0, is your entry ticket to the digital world of microscopy.

Many years ago this software was introduced as a “basic” software for capturing images and for storing them in a digital format. Nowadays the Motic Images Plus 2.0 is far from “basic”. With the help of many Motic Digital Microscope users around the world it has become highly sophisticated image analysis software with main functions to capture, automated counting, auto capture, video recording, measurements, creating reports, image, amalgamation.

At the present time we are still in close contact with many users of our software. Approximately each 6 months a new up-date of the Motic Images Plus 2.0, can be downloaded on our website. Once you have purchased a digital microscope you can get unlimited FREE up-dates.

Besides the software itself, we also put a lot of effort into making the digital microscopes compatible with different types of Operating systems, and of course the new releases of each Operating System. At present our digital microscopes are able to work with Windows (XP, Vista and 7), MAC and LINUX.

In case you would like to use a different Image analysis program with the digital microscope cameras, you can run most cameras by using the TWAIN driver or the DirectShow device.

Motic Images Advanced 3.2

Advanced Image Analysis Software

This software contains all the functions of the Motic Images Plus 2.0 software, plus much more.
It consists of three different modules; segmentation, multi-focus and assembly.

Segmentation

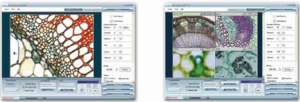

The superior counting module allows you to perform manual segmentations by using a histogram (colour), grey scale or by selecting the size. You can create in one sample different groups, which will be highlighted in different colours.
After the segmentation has been performed, you will have information about the area in square $\mu m$, perimeter, width, height and much more details.
The results of the segmentation can be exported in an excel file for further analysis.

Assembly

This module can be used for creating a single overview image out of multiple separate images. The software recognizes any overlapping and corrects this automatically. This software is specially designed for users who wish to have an overview of the complete sample, while working at a higher magnification.

Multi Focus

The multi-focus module can be used to capture up to 100 images taken at different focusing levels.
The software will automatically recognize the parts that are in focus in each image and assemble them into a new file. The result is a single image that is in focus.

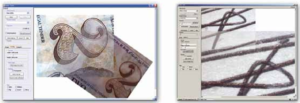

Motic Trace

Match or no match?

Motic Trace is the software that everyone has been waiting for. There is no need to buy an expensive comparison microscope anymore!

Simply connect two or more Moticams or Motic digital microscopes to your computer and get an immediate live comparison through the Motic Trace software.

Not only will you be able to compare images side by side, but you will also be able to overlay, resize and rotate them independently. Match two fingerprints, authenticate handwriting or determine whether two pieces of fabric belong to the same manufacturer, with the ease of just a few mouse clicks.

Motic Trace works together with Motic Images Plus 2.0 and therefore provides a comprehensive platform for further evaluation of the compared images. Create your reports with accurate measurements and editing tools.

All you need is two Moticam or two Motic digital microscopes, and you can teach forensics.

MoticNet

Get your microscopes connected

The network software MoticNet is compatible with all Motic Digital Microscopes. MoticNet offers the teacher a live overview for each student Digital microscope system. This overview can be extended up to a maximum of 48 individual digital microscope systems, in order to manage even larger classes by a single teacher.

With the MoticNet the teacher can have a complete overview of each students station, and also control and manipulate the quality of their microscope. This can all be done from the teacher’s computer. No need to walk around anymore, having to pass by each individual student to check their progress. Through a simple mouse click the teacher can broadcast the demonstration. Additionally, the work at one student’s station can also be shared with the entire classroom. Besides broadcasting a screen with the connected stations, it is also possible to send messages from the teacher’s computer to the student in question and vice versa.

MoticNet can even be useful outside teaching digital microscopy. Having each computer station connected and linked to the central control station of the teacher, MoticNet also allows third party programs such as Mathematics and Language software, to be launched and used. Allowing full remote keyboard and mouse control, any Windows based program can be initiated, controlled and manipulated by the teacher.
