Gluten Washer – Erkaya

Brand: Erkaya

Categories: Fluor Analyzer, Mixing Brand: Erkaya

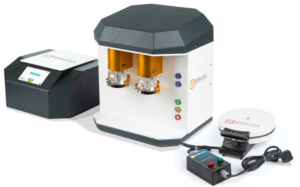

Gluten Washing System from Erkaya

Gluten Washing System determines wet gluten content, gluten index and dry gluten parameters.

Unique design with led buttons.
Conforms to Official World Standards (AACC No:38-52, ICC No: 155&158, 137/1).
Automatic Dual Chamber System.
Stainless steel box. No corrosion!
Measures both ground grain and flour
Measures wet gluten quantity in flour, wheat ,durum and semolina
Two different test methods in the same system.
Ease of Use
Rapid analysis. A complete test takes less than 7 minutes.
Possibility to adjust mixing time from 5 up to 75 seconds and washing time from 60 to 900 seconds.
Ease of pump tube replacement
Specially designed holes at the bottom panel enabling device to discharge the water, in the case of water pump tubes deterioration.
Segregation of grain and flour in terms of wet gluten amount.
Robust
Power Requirements: 110 V – 60 Hz or 220 V – 50 Hz
Power Consumption : 100 W
Size (W x D x H) : 33*42*35 cm
Net Weight : 15 kg

New design with 5’’ Touch Screen Display, first ever in the World!.
Displays ‘real rotation rate’ on the screen (6000 rpm).
Touch Screen Function provides ease of us.
2 different display themes.
Centrifuges wet gluten using prepared standardized method (ICC and AACC Standard methods).
Determines gluten index in 1 minute.
Stops automatically with a warning signal.
Locking safety lid provides safe operation.
Power Requirements : 110 V – 60 Hz or 220 V – 50 Hz
Power Consumption : 90 W
Size (W x D x H) : 31*31*17 cm
Net Weight : 7 kg
Display : 5’’ color touch screen

Dries wet gluten
Heater and control units are separate.
Operates at 150°C.
An accurate thermostat provides constant temperature
Teflon coating provides effective drying and easy removal of sample being tested.
Stops automatically warning with a beep signal.
Power Requirements : 110 V – 60 Hz or 220 V – 50 Hz
Power Consumption : 1500 W
Size (W x D x H) : 20*9*24 cm
Net Weight : 2 kg
