UNDERDRIVEN COMIL® CONICAL MILL – QUADRO

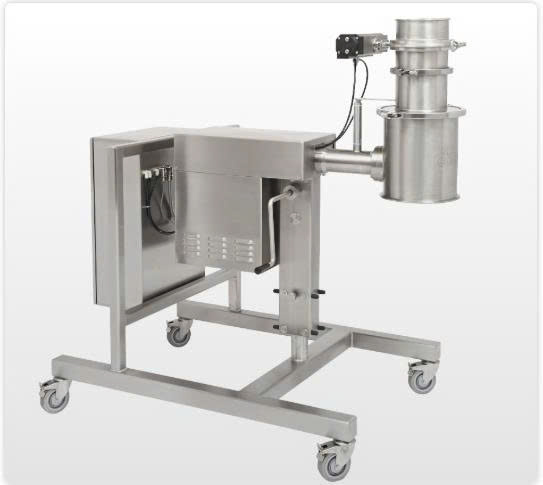

The Underdriven Comil® cone mill by Quadro is an advanced powder milling solution, featuring a compact design with the milling head positioned below the equipment. This mill is suitable for diverse industrial applications, offering flexible integration into existing processing lines, precise particle size control, and significantly enhanced productivity compared to traditional milling equipment. The Underdriven Comil® cone mill utilizes interchangeable milling heads, catering to various production scales, from laboratory and pilot-scale operations to large-scale manufacturing processes.
KEY FEATURES:
- Compact design for seamless integration into processing systems.
- Low-profile milling head, ideal for space-limited environments.
- Large infeed diameter and straight-through design optimize product flow and throughput.
- Easy interchangeability of impellers and screens.
- Capable of handling heat-sensitive materials.
INDUSTRY APPLICATIONS:
- OSD Pharmaceuticals
- Nutraceuticals
- Food Processing
- Chemical Industries
- Cannabis Processing
- API Pharmaceuticals
MAIN PRODUCT LINES:
- Lab-scale Milling: SLS U5 – Underdriven Comil®
- Precise particle size distribution (PSD) control.
- Reduced heat generation during milling.
- High milling efficiency (up to 30% improvement in on-spec product yield).
- Seamlessly integrates with the Scalable Lab System (SLS).
Technical Specifications:
- Capacity (Wet): 200 kg/hr
- Capacity (Dry, Screen 094R – 2.4mm): 50 kg/hr
- Motor power: 0.5 HP (375W)
- Mid-Scale Milling: SDx™ U10x – Underdriven Comil®
- Ideal for pilot-scale or mid-range production.
- Accurate PSD control with minimal heat generation.
- Exceptional milling performance.
Technical Specifications:
- Capacity (Wet): 450 kg/hr
- Capacity (Dry, Screen 094R – 2.4mm): 400 kg/hr
- Capacity (Dry, Screen 040G – 1.0mm): 100 kg/hr
- Motor power: 2 HP (1.5 kW)
- Production-Scale Milling: SDx™ U20x – Underdriven Comil®
- Designed for industrial-scale production.
- Superior particle size control and milling efficiency.
- Easy replacement of milling heads within the SDx™ series.
Technical Specifications:
- Capacity (Wet): 2250 kg/hr
- Capacity (Dry, Screen 094R – 2.4mm): 2000 kg/hr
- Capacity (Dry, Screen 040G – 1.0mm): 500 kg/hr
- Motor power: 5 HP (4 kW)
- High-Energy Milling: Comil® H20
- Achieves particle size reductions 30-70% finer.
- Strict PSD control and easy cleaning process.
- Meets stringent containment standards (OEL <1 µg/m³).
Technical Specifications:
- Motor power: 5 kW
- Capacity range: 150–500 kg/hr
- Screen diameter: 200 mm
