01 | Future-orientation
Expand Your Capabilities for the Future
Your testing requirements today may be different tomorrow. HAAKE MARS is designed to grow with your laboratory.
A wide range of accessories—including temperature modules, application-focused measuring cells and measuring geometries—allows the system to adapt as testing requirements evolve.
Existing HAAKE MARS systems can also be upgraded with new hardware and software, helping users incorporate future technological developments without replacing the entire platform.
The platform is compatible with the Thermo Scientific™ HAAKE™ Viscotester™ iQ Rheometer and HAAKE™ MARS™ iQ Rheometer Series, supporting the transfer of test methods from R&D to QC.
One platform. Expanding possibilities. Long-term flexibility.
02 | Accuracy
Engineered for Stable and Reproducible Measurements
Accurate rheological measurements begin with a stable mechanical platform.

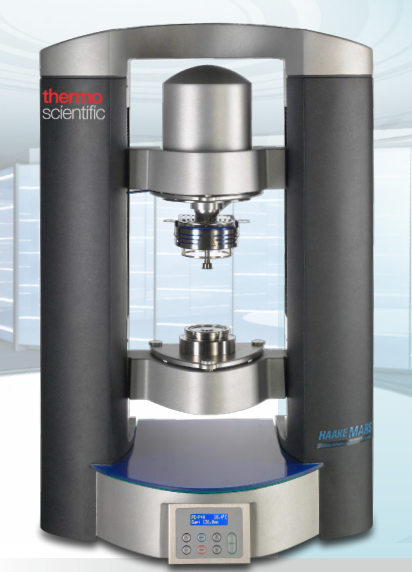

The HAAKE MARS features a robust one-piece, cast-aluminum H-shaped frame designed for optimized force distribution and high mechanical stability.
Unlike conventional C-shaped frames, the H-shaped design aligns the active forces generated by the sample and the reactive forces within the frame on the same plane. This helps minimize measuring-gap changes caused by high normal forces and supports reproducible, reliable measurement results.
The platform also incorporates integrated control electronics, ergonomic controls and flexible mounting options for temperature and application modules.
Precision Where It Matters
From sample loading to temperature control and measurement geometry, every element is designed to support consistent testing conditions and reliable rheological data.
03 | Ease of Use
Simplify Operation. Minimize Errors.
Advanced technology should make laboratory work easier—not more complicated.
HAAKE MARS incorporates a user-focused design to simplify daily operation and reduce the potential for user errors.
Smart Features for Efficient Operation
- Pneumatic rotor release for quick and convenient rotor handling.
- TCP/IP Ethernet interface for high-speed, real-time data acquisition, with data points available every 2 milliseconds.
- Integrated web server for password-protected remote operation and measurement monitoring.
- Optimized measuring geometries to support accurate and consistent sample loading.
- Connect Assist technology for fast accessory exchange, automatic recognition and correct alignment of measuring geometries and temperature modules.
- Universal temperature modules enable rapid switching between coaxial cylinders, parallel plates and cone & plate geometries.
HAAKE RheoWin™ Software
Powerful Software. Flexible Workflows.
The customizable HAAKE RheoWin™ Software provides comprehensive tools for measurement control, data evaluation, user management and reporting.
Key capabilities include:
- Automated measurement, analysis and documentation
- Interactive data evaluation
- Customizable measurement routines using drag-and-drop functionality
- User access and permission management
- Automated file naming and data storage
- Data transfer to ERP and laboratory systems such as SAP® and LIMS
- Customizable report templates with logos and user-defined content
- Advanced data analysis including interpolation, regression and automated quality control
- Flexible data export in formats such as ASCII, MS Excel® and XML
- Support for multiple rheometers and simultaneous data evaluation
- Storage of raw data for further analysis
From measurement setup to final report, RheoWin helps streamline the entire workflow.
04 | Modularity
One Platform. Multiple Measurement Possibilities.
The modular architecture of HAAKE MARS gives laboratories the freedom to configure the system according to their specific materials and applications.
A comprehensive range of measuring geometries includes:
- Coaxial cylinders in different materials, sizes and surface finishes
- Double-gap cylinders for low-viscosity fluids
- Parallel plates with different diameters and surfaces
- Cone & plate geometries with different diameters and cone angles
- Vane rotors for highly filled or inhomogeneous samples
- Disposable geometries for curing materials
- Serrated and sandblasted surfaces to minimize wall-slip effects
- Solid clamps for Dynamic Mechanical Thermal Analysis (DMTA)
- SER (Sentmanat Extensional Rheometer) for extensional measurements
- Universal adapters for individual rotors
- Customized measuring geometries available on request
This flexibility enables measurements ranging from water-like liquids to highly structured materials and solids.
Flexible Temperature Control
HAAKE MARS provides extensive temperature-control options, with sample temperature control from approximately -150 °C to 600 °C, depending on the selected module and configuration.
Available solutions include:
- Peltier Temperature Modules
- Liquid Temperature Modules
- Electric Temperature Modules
- Controlled Test Chamber (CTC)
- Universal Active and Passive Upper Temperature Modules
Plug-and-play connections, automatic module recognition and rapid temperature equilibration help simplify temperature-controlled rheological testing.
05 | Application-based Solutions
Configured Around Your Application
No two testing requirements are exactly the same.
The open and spacious design of HAAKE MARS makes it easy to adapt the rheometer to specialized applications through a wide range of application-oriented measuring cells and customized measurement setups.
Solutions are available for demanding applications including:
Food | Construction Materials | UV-Curing Materials | Polymers | Coatings | Pharmaceuticals | Petrochemicals | Cosmetics | Mining
Customized configurations can also be developed for specific measurement requirements.
For example, the measuring head can be installed in the lower holder to achieve optimized positioning within a beam path, enabling specialized configurations such as the use of two measuring heads.
HAAKE MARS
A Rheometer Platform That Evolves With Your Laboratory
From advanced research and material development to routine quality control, Thermo Scientific™ HAAKE™ MARS™ Rheometer provides the flexibility to adapt to changing requirements.
With future-ready modularity, high mechanical stability, intuitive operation, extensive measurement options and application-focused solutions, HAAKE MARS gives laboratories the tools to explore materials more deeply and respond confidently to new testing challenges.
