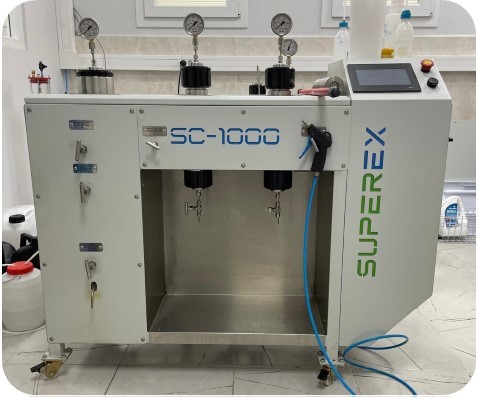

SUBCRITICAL WATER EXTRACTION SYSTEM SC-1000 – SUPEREX

Origin: Turkey

Brand:

Category:

The subcritical water extraction system is designed to efficiently and environmentally friendly extract natural compounds. Equipped with an extraction vessel and two separators, the system operates at high temperature and pressure, allowing for the effective extraction of phenolic compounds without the need for chemical solvents. All surfaces in contact with food are made of stainless steel, ensuring hygiene and preventing microbial attachment. The system features PID temperature control, automatic pressure regulation, and a back pressure regulator, ensuring precise and stable extraction. Additionally, users can integrate a supercritical CO₂ module to expand the extraction capability for high-value compounds.

MODEL: SC-1000 SUB-CRITICAL

SPECIFICATION

  • 1 Liter extractor vessel
  •  2 separator vessel
  •  Working pressure up to 300 Bar
  •  Working temperature up to 200 °C
  •  Design suitable for sub-critical water extraction
  •  Temperature control and powerful cooling in separators
  •  All surfaces in contact with food are stainless steel
  • Smooth-honed reactor columns against microbial attachments
  •  PID algorithm temperature control
  •  Digital fully automatic pressure control
  •  Automatic back pressure regulator (aBPR)
  •  Sample loading with stainless steel basket or fabric basket
  •  Bottom gas feeding or cyclone flow feature to separators
  •  Supercritical carbon dioxide module can be added as an option
  •  Green extraction of polar groups such as phenolic compounds
