DACHTEST Online Low- and Medium-Voltage Discharge Testing System provides fast, non-destructive leak detection directly on the production line. Using controlled electrical discharge technology, it reliably identifies seal defects in real time, ensuring packaging integrity, product safety, and efficient high-speed quality control.

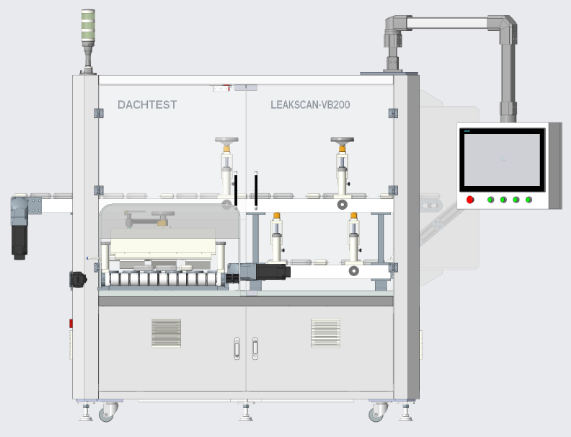

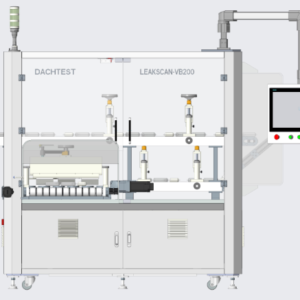

LeakScan-VB200
Online low- and medium-voltage discharge testing;
Test voltage: 0~5KV or 0~10KV; current resolution: ±1uA
Various flexible infusion bags, fat emulsion bags, etc.
Front and back test, front-bottom-back test
Test speed: ≤120/minute
Test accuracy: ≤5 μm
Automatic testing, automatic rejection
Options:
Leakage detection at poor weld points between multi-bags

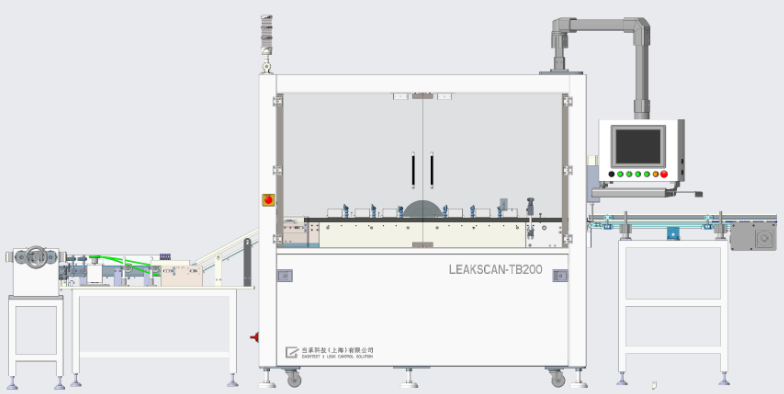

LeakScan-TB200
Online high-voltage discharge test;
Various types of townhouses with three-in-one BFS
Front and back test, head-middle-tail test
Test speed: ≤90 rows/minute
Test accuracy: ≤5 μm
Automatic testing, automatic rejection
