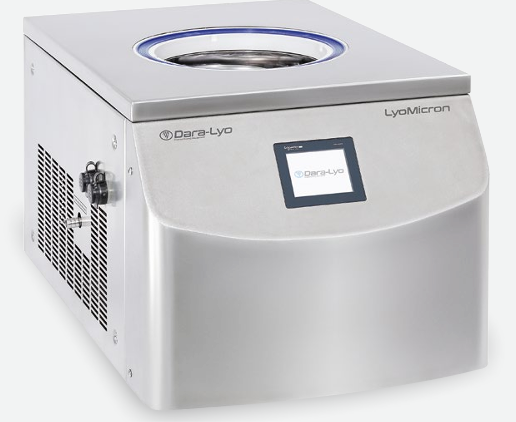

LYOMICRON – DARA

Origin: Spain

Brand:

Category: Tags: , ,

LyoMicron is designed for freeze-drying trials during the concept research stage or for small-scale lyophilization batches.

Its compact design and powerful performance meet all laboratory requirements and can be equipped with a wide range of optional accessories. Therefore, the system provides the most suitable performance for every application need.

LyoMicron

  • Designed for laboratory / small-scale production.
  • Dimensions: 420 × 630 × 380 mm (-55°C) | 740 × 600 × 380 mm (-85°C).
  • Ice condenser capacity up to 6 kg.
  • Ice condenser temperature down to -85°C*.
  • Lightweight equipment, starting from 65 kg*.

Reliability and flexibility for every application.

Capacity up to 2,800 units of 2R vials.

Specifications

Model LyoMicron LyoMicron
Ice condenser temperature -55°C -85°C
Dimensions (W × D × H) 420 × 630 × 380 mm 740 × 600 × 380 mm
Ice condenser capacity 6 kg 6 kg
Condensing capacity in 24 hours 5 kg 5 kg
Electrically heated shelves Optional Optional
Number of compressors 1 2
Power consumption 1,500 W 2,500 W
Weight 65 kg 85 kg
Vacuum control Optional Optional

Base Software

By combining automation solutions with pharmaceutical freeze-drying processes, Dara-Lyo has developed a reliable, safe, and user-friendly system for monitoring and managing process data.

Within this product range, process data recording and recipe adjustment are particularly important. This enables users to identify, develop, and establish parameters aimed at future efficient production while achieving maximum performance for lyophilized products.

Function Description
Users Allows registration of multiple user access levels through the HMI interface.
Recipe programming Allows input of freeze-drying recipe parameters via the control screen.
Data export Cycle data can be exported through a USB port.
Options SCADA software for process data acquisition compliant with FDA 21 CFR Part 11 standards.

Vacuum Pumps

Two-stage oil-sealed rotary vane vacuum pumps are used to achieve medium and low pressure. This equipment is highly suitable for R&D centers, laboratory environments, etc.

  • Oil level sight glass.
  • Maximum vacuum pressure: 2 × 10² mbar.
  • KF 25 inlet connection.
  • Flow rates from 6 m³/h to 36 m³/h.
  • Durable and quiet operation.
  • Easy maintenance.
  • Hybrid pumps or dry pumps for organic solvents.
  • Chemical resistance (optional).
