The integrity of the seals on pharmaceutical and medical packaging containers is crucial for patient safety. Incompletely sealed containers allow environmental contaminants or microorganisms to enter, leading to moisture absorption and contamination of the medication, affecting its quality. For sterile preparations administered directly to the human body, such contaminated products can cause allergic reactions, and in severe cases, endanger the patient’s life.
With the rapid development of various packaging and container combinations for pharmaceuticals, coupled with innovative administration methods, different drug properties, different storage temperatures, and even different dosages, the testing of the sealing integrity of packaging containers has become increasingly challenging. Therefore, no single method can be universally applied to all packaging containers. A reasonable sealing test method should be scientifically selected based on factors such as different packaging materials, drug properties, and headspace conditions.
DACHTEST Low, Medium, and High Voltage Leak Tester is a reliable solution for detecting leaks and defects in packaging and sealed products. Designed for flexibility across different voltage levels, DACHTEST ensures accurate, non-destructive testing to maintain product integrity, safety, and quality in pharmaceutical, medical, and industrial applications.

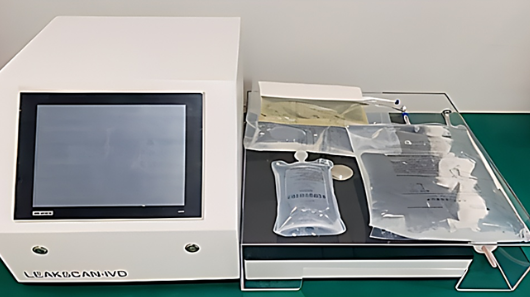

LeakScan-IVD
Medium and low voltage discharge test;
Test voltage 0~10KV;
Current resolution: ±1uA;
Various flexible plastic bags containing conductive liquids; such as infusion bags, nutrient solution bags, dialysis bags, etc.
Test accuracy: ≥1 μm

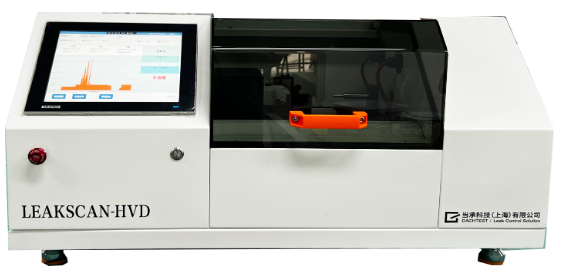

LeakScan-HVD
High-voltage discharge test;
Test voltage 0~22KV;
Current resolution: ±1uA;
Various types of rigid glass bottles containing conductive liquids; such as ampoules, vials, pre-filled syringes, cartridge bottles, etc.
Test accuracy: ≥1 μm

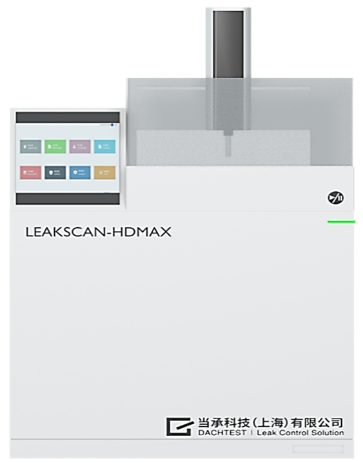

LeakScan-HDMAX
High-voltage discharge test;
Test voltage: 0~22KV, current resolution: ±1uA
Rigid/rigid packaging containers containing conductive liquid drugs, such as various small-capacity ampoules, vials, pre-filled syringes, and cartridges .
Automatic batch injection, ≥30 samples/tray
Automatic control of test sample rotation and electrode scanning;
Test accuracy: ≥1 μm
