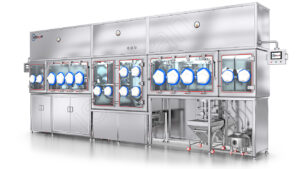

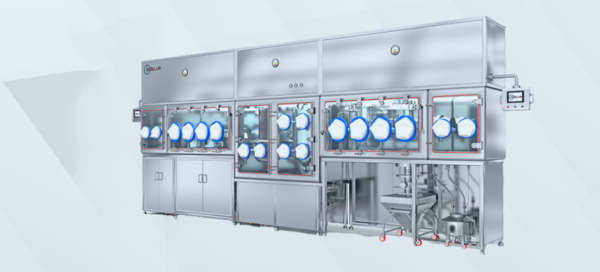

Granulation Isolator
This is a Negative Pressure Isolator completes a major share of manufacturing in Oral Solid Dosage Lines.
Special Features
- In-house manufacturing capabilities for equipment’s & Isolators
- Complete customization of products
- Dual colour lights for regular & light sensitive drugs
- All systems are supplied with a 12” touch screen colour HMI by default
- Safe change push push HEPA filters (for negative pressure isolators only)
- Safe change gloves for all Isolators
Optional Features
- Blower fail system that ensures negative pressure despite of blower motor trip
- Auto leak test cycles
- Glove integrity testing
- 15” Windows IPC with SCADA
- Flameproof or Non-Flame proof systems
Optional Features
- Inflatable gaskets
- Exhaust filter box & wet scrubber
- IsoSAAN © SBV suspension charging assembly
- IsoSAAN © SBV floating disharging assembly
- IsoSAANS smart LPU
System Information
| Type | : Rigid Negative Pressure |
| Air Flow Pattern | : Turbulent at 20 – 25 ACPH |
| Operating Pressure | : – 60 to – 100 Pascal’s |
| Processing Range | : 5 Grams – 500 Grams |
| Customised Range | : 5 Kg – 10 Kg. (Maximum) |
| OEL Handling Range | : OEL 4 to OEL 5 |
Ingress Options
| RTP Port | : Material Handling up to 3 Kg |
| In-Feed Pass Box | : Material Handling up to 5 Kg |
| Vacuum Transfer System | : Material Handling up to 10 Kg |
Egress Option
| BIBO Bags / Continuous Liners + Out Pass Box SBV | : OEL 4 up to 5 Kg. |
| SBV | : OEL 5 up to 30 Kg. |
Granulation Configurations
| Vibro Sifter 12” | : Single Deck or Double Deck |
| Rapid Mixer Granulator | : Single Bowl with Mechanical Seals |
| Binder Addition System | : Perilstatic Pump with Jacketed Vessel |
| Inline Wet Mill | : Connected to RMG Discharge |
| Extruder & Spheronizer | : Pallet Manufacturing |
| Fluidised Bed Processor | : Closed Loop Charging, Top & Bottom Spray Options, Dedicated AHU & Wet Scrubber, Safe Change Filters |
| Dry Mill | : with Mechanical Seal & Vacuum Charging |
| Blending | : On-board & Off-line |
| Universal Mill | : Centrifugal Sifting, Dry Milling |
| Weighing Scale | : Sensitive with 4 – 20mA O/p |
| Vacuum Transfer System | : with Dedicated Scrubber for Vacuum Line |
