VACUUM-SEALED LEAK TESTER (VSLT) – OXIPACK

Brand:

Category:

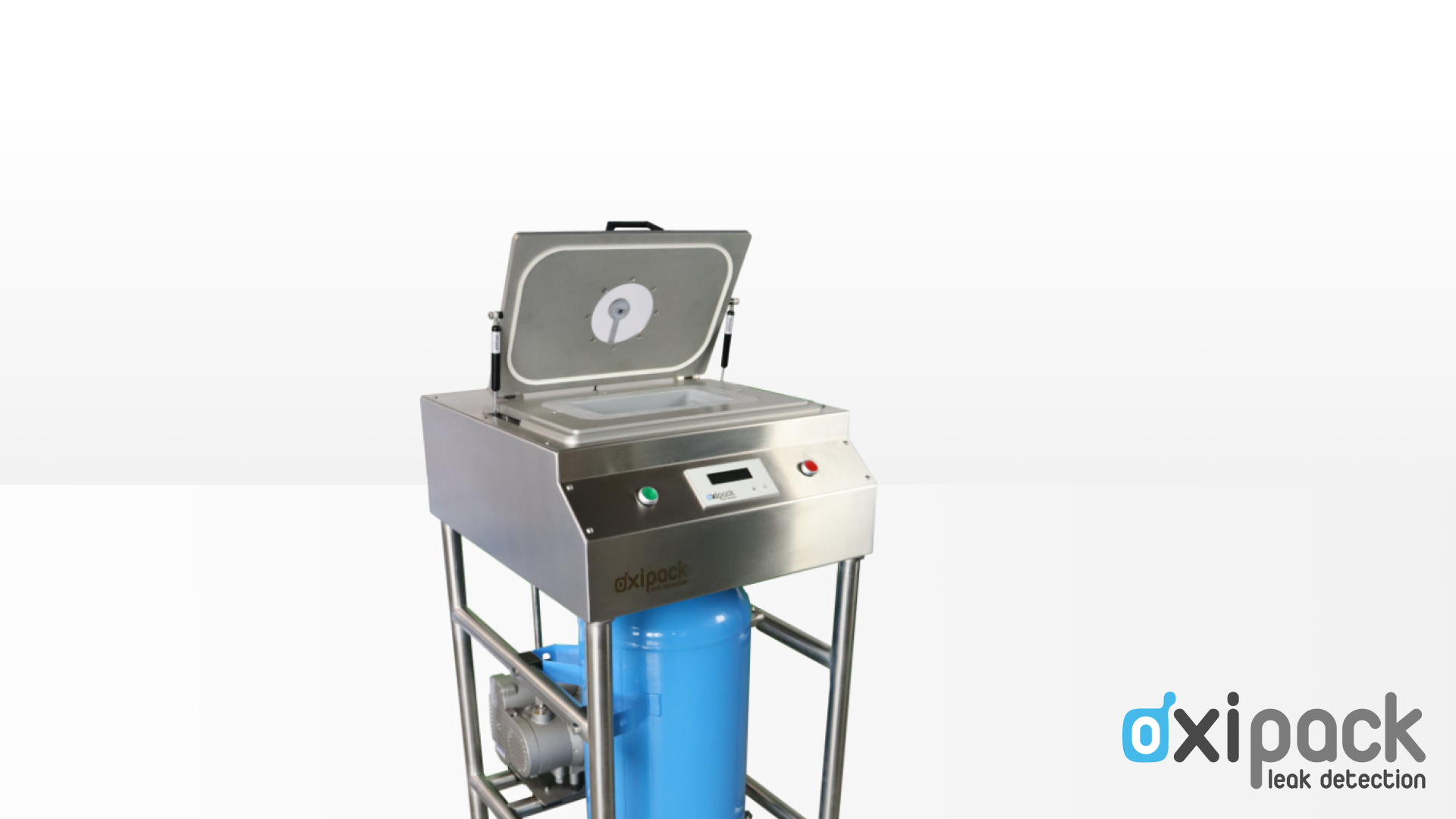

The Oxipack Vacuum-Sealed Leak Tester (VSLT) is specifically designed for detecting leaks in vacuum-sealed packaging, ideal for products like vacuum-packed sausages. It can test packaging immediately after production, identifying even the smallest micro leaks. The VSLT is particularly useful in the meat industry, where leak detection is crucial for product quality and shelf life.

The machine features a built-in vessel and vacuum pump, creating a deep vacuum in a small measuring space around the packaging. This enables the VSLT to detect both micro and larger leaks in a non-destructive manner. Additionally, its capacity to test various packaging shapes and sizes, thanks to customizable inserts, makes it a versatile and essential tool for quality assurance in vacuum-sealed products.

VACUUM-SEALED LEAK TESTER (VSLT) – OXIPACK

Features:

  • Designed for vacuum-sealed packages with minimal air.
  • Built-in vessel and vacuum pump.
  • Custom-made exchangeable inserts.

Benefits:

  • Ideal for the meat industry and similar applications.
  • Detects both micro and larger leaks.
  • Versatile for different packaging shapes and sizes.

Technical Specifications:

  • Dimensions and Weight: 560 x 750 x 1200 mm, 105 KG
  • Materials: Stainless steel, Anodized aluminium, Polycarbonate, Rubber, Accura Xtreme
  • Power Supply: 230V 50/60HZ
  • Size Measuring Chamber: 225 x 130 x 55 mm (L x W x H)
  • Compliance and IP Rating: CE IP40
  • Maximum Testing Capacity: 1 test P/M
  • Connections: Ethernet export, 24VDC logic (free programmable)
  • Packaging Type: Vacuum
  • Options: IOT Data, Barcode scanner, Printer, Line Numbers
  • Features: Non-destructive, accurate, easy to operate, direct result, robust design

Related products

STATIONARY LEAK TESTER PHARMACEUTICAL (SLTP) - OXIPACK

Leak Tester

STATIONARY LEAK TESTER PHARMACEUTICAL (SLTP) – OXIPACK

Oxipack's standard solution for testing a wide range of flexible packaging, the SLT combines efficiency and accuracy in leak detection for maintaining product quality.

OXIPACK BOTTLE LEAK TESTER (BLT) - OXIPACK

Leak Tester

OXIPACK BOTTLE LEAK TESTER (BLT) – OXIPACK

The Oxipack Bottle Leak Tester (BLT) is a specialized solution designed for testing a diverse range of bottles, catering to different dimensions and shapes. Utilizing the vacuum decay method, the BLT ensures that every part of the bottle, from the top to the entire structure, is thoroughly tested for leaks without compromising the contents. The BLT's unique measuring head creates an optimal closure around the bottle, allowing for the detection of both significant and minute leaks. The pre-formed design of the tester matches the exact shape of the packaging, ensuring a protective embrace and meticulous accuracy. This non-destructive, user-friendly, and robustly designed tester is integral for maintaining the integrity of bottled products, proving indispensable in quality control processes.

Online Mechanical Force Attenuation Test System DACHTEST

Leak Tester

Online Mechanical Force Attenuation Test System DACHTEST

DACHTEST Online Mechanical Force Attenuation Test System enables real-time, non-destructive leak detection by measuring force loss through package walls and seals on the production line. Designed for high-speed inspection, it ensures reliable package integrity, consistent quality, and efficient process control. FoodScan-XB100 Online mechanical force attenuation test; Various flexible plastic packaging Examples include plastic packaging for...

Online Vacuum Decay and Pressure Decay Leak Tester Dachtest

Leak Tester

Online Vacuum Decay and Pressure Decay Leak Tester Dachtest

DACHTEST Online Vacuum Decay and Pressure Decay Leak Test System enables real-time, non-destructive leak detection directly on the production line. By continuously monitoring pressure changes, it ensures fast, accurate verification of package integrity while supporting high-throughput manufacturing and consistent quality control. LeakScan-VB100 Online vacuum decay or pressure decay test; Various PET plastic bottles, vials, etc....

CONTAINER CLOSURE INTEGRITY TESTER (CCIT) - OXIPACK

Leak Tester

CONTAINER CLOSURE INTEGRITY TESTER (CCIT) – OXIPACK

Designed to handle a variety of rigid products like vials, bottles, pods, capsules, cans, and jars, the Oxipack Container Closure Integrity Tester employs a vacuum decay method for effective and non-destructive leak detection

Online Machine Vision Foreign Object Testing System DACHTEST

Leak Tester

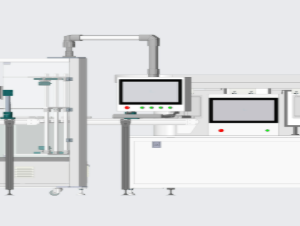

Online Machine Vision Foreign Object Testing System DACHTEST
