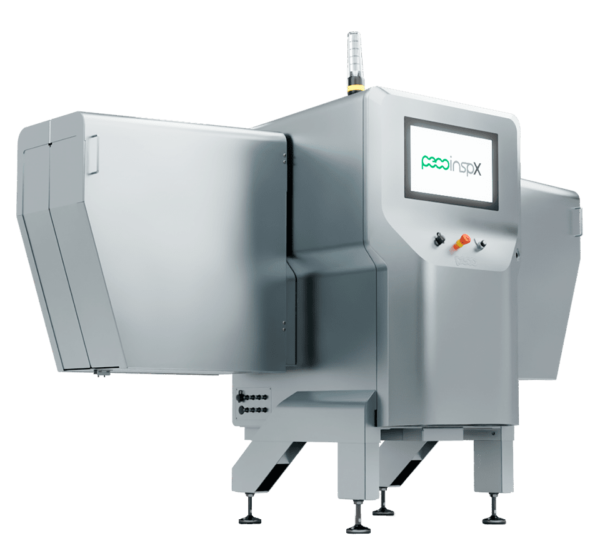

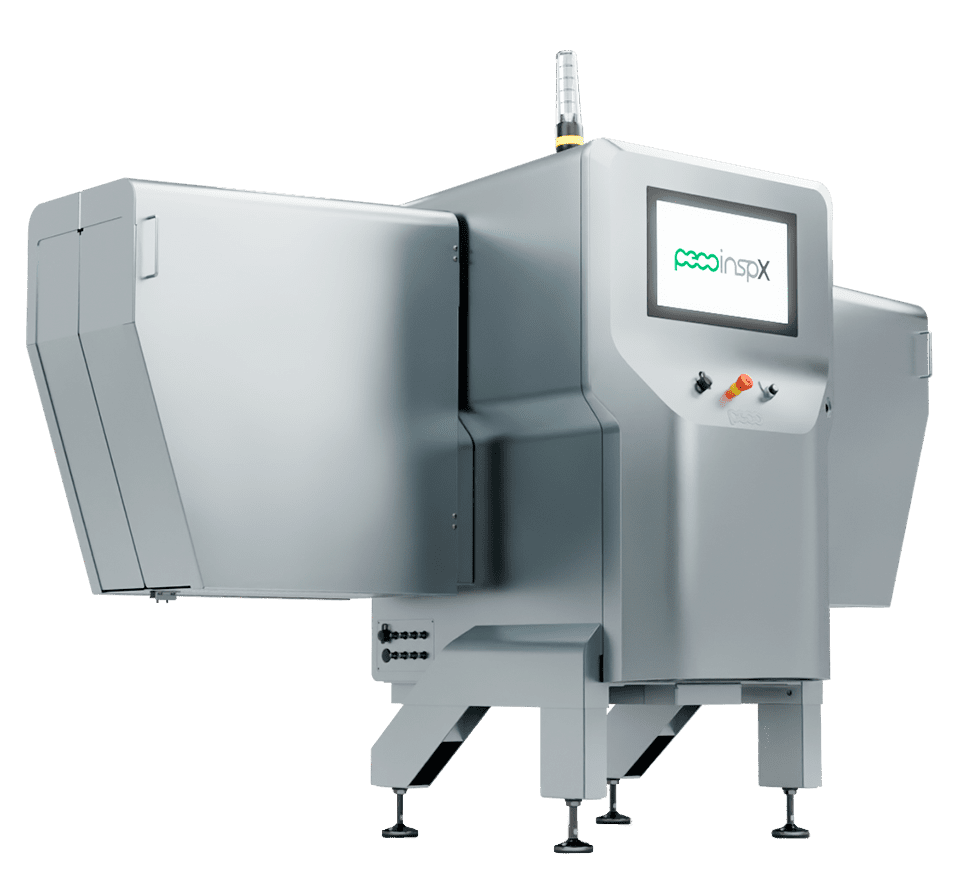

The Trio is Peco InspX’s high performance rigid package X-ray inspection system, with impressive performance in glass-in-glass identification. The Trio offers very high speed (> 1,000 containers per minute) non-contact container inspection.
The Trio leverages three X-ray beams powered from a single X-ray tube to provide 3 individual “looks” at each container, which allows optimal detection of asymmetric pieces of foreign material such as glass shards.
Customers are encouraged to consult with a Peco InspX sales specialist to determine which machine is best suited for their glass application.
FEATURES
-
Modular Design – All subsystems have been designed with the maximum system availability, redundancy, and fault tolerance in mind
-
Fill Level Measurement – High precision fill-level and headspace monitoring
-
Real-Time Remote Support – Integrated wireless connectivity allows for secure remote support 24/7 globally. Peco InspX can resolve over 95% of customer issues with our powerful remote diagnostics software
-
Robust IT Security – Fully integrated end-to-end IT security offerings ensure your networks aren’t vulnerable and are defended from any outside threats. Optional IoT module allows for seamless SCADA integration
-
Advanced X-ray Tube/Detector Design – High contrast X-ray tube with independent power supply allows for lowest cost of ownership. Detector hardened against wear to maximize the component lifetime
-
High Reliability Non-Contact Inspection – Mounts over the top of the customer’s existing conveyor, eliminating conveyor transfers into the machine for inspection. This design minimizes risk against conveyor jams over transfer points
-
3 Beams Powered by a Single X-ray Tube – The Trio offers the power of 3 X-ray beams with the simplicity of a single X-ray tube. This design offers maximized performance with minimum cost of ownership
-
Small Line Footprint – The Trio is the smallest footprint dedicated glass X-ray inspection system available on the market today. The Trio requires less than 9 ft (3 m) of linear line space
TYPICAL APPLICATIONS
- Glass Food Containers
- Glass Beverages Containers
- Empty Glass Containers
TECHNICAL INFORMATION
| Feature | Specification |
|---|---|
| Architecture | Side view X-ray system |
| Conveyor | No internal conveyor. Mounts over customer’s existing conveyor. No transfer points or product contact |
| X-ray Tube Configuration | High contrast X-ray tube – triple beam |
| Aperture Size | Max Width: 9 in (229 mm), Max Height: 12 in (300 mm) |
| Environment | Standard: IP 66 / NEMA 4X; Optional: IP 69K, Passivation |
| Line Speed | Up to 650 ft/min (198 m/min) |
| Input Voltage | 120 or 240 VAC options available |
| Air Supply | 80 psi @ 5 cfm (for ejection only) |
| Ambient Temperature | 33°F – 113°F (1°C – 45°C) |
| Diode Size | Configurable to 0.8 mm, 0.4 mm, and 0.2 mm |
| Container Ejection | Full range of high-speed ejection and diversion options available |
| Dimensions (LxDxH) | 104 x 43 x 82 in (2,640 x 1,092 x 2,083 mm) |
| Safety Rating | Redundant – Category 4, Performance Level E |
| Computer | Solid State Industrial PC with Windows 10 and integrated AV |
| Connectivity | Integrated WiFi, Ethernet, or Cellular Connection |
| Supported SCADA Systems | Ignition, Wonderware, FactoryTalk, Kepware, and other OPC-UA compliant systems |
| Supported Cloud Platforms | Azure IoT Hub, AWS, and Google Cloud via MQTT |
| Operator Interface | 20″ wide touchscreen |
| Construction | Standard: 304 Stainless Steel; Optional: 316L / Passivated |
OPTIONS
Industrial IoT Capabilities
Peco InspX offers industry leading plant connectivity and remote control including:
- SCADA integration via OPC-UA protocol into Ignition, Wonderware, FactoryTalk, Kepware and all other popular integrated software platforms
- Native support for Azure, AWS, and Google Cloud via MQTT
- Real time system and performance monitoring of each machine
- Insight into operational performance bottlenecks
- Automatic archiving and classification of reject images
- Optional archiving of all inspection images
Reject Management Package
Reject Management Package include secure options:
- Lockable reject bin to ensure authorized access to rejected packages
- Sensors to ensure positive confirmation on expected rejects
- Sensors to alert on “bin full” condition
- Air pressure sensor to alert for any out-of-range air supply problems
- Optional software-controlled lock for user configurable access
Simultaneous Underfill and Overfill Monitoring
With the addition of a Peco InspX FillTrac, the system can simultaneously measure underfill and overfill levels
Cocked/Missing Cap Detection
The cocked/missing cap sensor for plastic closures is an inexpensive way to ensure that containers are properly capped
Track and Trace Capabilities
In collaboration with industry-leading industrial package printers, Peco InspX offers an end-to-end package tracing system that prints on the inspected container the status (good or bad) of every package to ensure packages are auditable to their inspection results and X-ray image
Full Range of Ejection Options
Peco InspX designs and manufactures a wide range of high-performance ejectors and diverters to include single solonoid, multiple solonoid, swing arm, lift gate, drop gate, air blast, flexible rail, guided path, and heavy-duty options
Remote Operator Console
The remote operator console provides complete system monitoring and control up to 6 meters from the system inspection assembly
RFID Access Control
Support automatic system authentication using customer ID badges. Supports a wide range of standard access protocol frequenciese of foil seals under caps
Sanitary Design
Can be equipped with an IP69K enclosure for high pressure wash down environments
Missing Foil Detection
The missing foil sensor verifies the presence of foil seals under caps
