FEATURES AND BENEFITS:
• Tactile texture analyzer.
• Integrated temperature probe.
• Direct curve display on screen.
• Built-in programming software.
• Data recording and USB transfer.
• Wide range of probes and fixtures.
• Interchangeable load sensors.
• Height-adjustable tray.
• Compatible with RheoTex software.
• LIMS function.
• Printer connection.
• Working distance: 400 mm (depending on reference).
Available models:
- N159010 – TX-900 Texture Analyzer – 10N
- N159020 – TX-900 Texture Analyzer – 20N
- N159050 – TX-900 Texture Analyzer – 50N
- N159100 – TX-900 Texture Analyzer – 100N
- N159250 – TX-900 Texture Analyzer – 250N
- N159500 – TX-900 Texture Analyzer – 500N
TECHNICAL SPECIFICATIONS:
• Texture Analyzer operating in compression and tensile modes with 7’’ touch screen.
• Choice of sensors:
- 10 N (1 kg), Resolution: 0.001 N (0.1 g)
- 20 N (2 kg), Resolution: 0.001 N (0.1 g)
- 50 N (5 kg), Resolution: 0.001 N (0.1 g)
- 100 N (10 kg), Resolution: 0.001 N (0.1 g)
- 250 N (20 kg), Resolution: 0.01 N (1 g)
- 500 N (50 kg), Resolution: 0.01 N (1 g)
-
Accuracy: ± 0.5% of full scale.
• Speed range: 0.1 to 10 mm/s ± 0.2%.
• Motion: Height: 400 mm / Resolution: 0.1 mm (0.01 mm with RheoTex software).
• Temperature probe: Equipped with PT100 sensor, measuring from -50°C to +300°C.
• Display parameters: Force – Speed – Distance – Temperature – Time – Probe – Load sensor – Date/Hour – Force unit selection (Gram or Newton).
• Languages: French / English / Turkish / German / Italian / Korean / Portuguese / Ukrainian / Russian.
• Security: - “Operator” function allows login with username and 4-digit PIN.
- Protected mode available to lock measurement conditions.
- Power supply: 90–240 VAC, 50/60 Hz.
- PC connection: RS232 port.
- Printer connection: USB Host – PCL/5 compatible.
BENEFITS:
• Integrated adjustable turntable, diameter 160 mm.
• Table for attaching fixtures: 120 × 220 mm.
• Multiple operating modes: Compression – Relaxation – Tensile – TPA Cycle – Penetrometry – Relative compression.
• Wide range of probes available, custom probes can be made (material, shape, size).
• Large 7’’ color touch screen for easy use and optimal display.
• Storage of measuring methods, data backup and export via USB.
• External control via optional software.
• Dimensions: D610 × W340 × H970 mm.
• Weight: 25 kg.
OPTIONS & ACCESSORIES:
• Probes.
• Fixtures.
• Barcode reader.
• Touch screen protector.

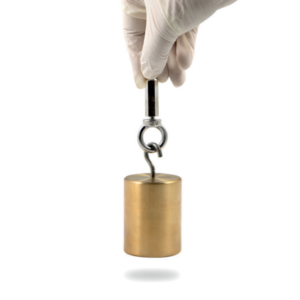

• Calibration kits:
- 10–20 N (Ref. 150060)
- 50–250 N (Ref. 150070)
- 500 N (Ref. 150080)
RheoTex software.
• Load sensors: - 10 N (Ref. N150010)
- 20 N (Ref. N150020)
- 50 N (Ref. N150050)
- 100 N (Ref. N150100)
- 250 N (Ref. N150250)
- 500 N (Ref. N150500)
- Emergency stop button (Ref. 100700).
