Rotary Evaporator EcoChyll X9 from Ecodyst

For many years, rotary evaporators (rotovaps) have been a standard in laboratories and industries that perform chemistry, such as laboratories in the pharmaceutical, academic, government, chemical, life sciences, food & beverage, cleantech, materials, environmental and cannabis sectors. Rotovaps consist of a heating fluid bath, rotating motor, evaporating flask, receiving flask, vacuum source, and condenser. The conventional rotovap condenser requires an external source of cooling material such as dry ice, liquid nitrogen, water or glycol. Glycol requires additional recirculating chiller equipment. Using a proprietary and innovative self-cooling technology, Ecodyst has revolutionized the rotovap to be more efficient, to have a smaller footprint, to have greater output, and to be less expensive to operate. The modern smart self-cooling technology from Ecodyst boosts productivity and prevents productivity downtime. The technology offers a paradigm shift and sets a new benchmark for rotovaps without the use of glycol, dry ice, or water, thus eliminating the major sources of material waste associated with conventional rotovaps.

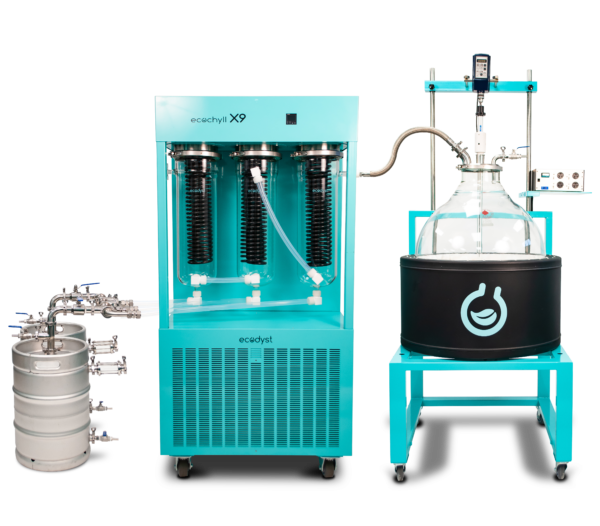

Engineered to satisfy the highest volume requirements for decarboxylation and solvent recovery, the
EcoChyll® X9 large capacity evaporation unit is a high-speed and ultra-efficient system for demanding botanical
extractions. Based on unique triple coil self-cooling technology, this workhorse solution is the best evaporation
unit for large-scale extractions, with a greater maximum capacity than any alternative on the market.
The EcoChyll® X9 evaporation unit was engineered to address the bottleneck in botanical extraction laboratories
servicing the booming hemp industry. Extractions, solvent recovery, and decarboxylation processes that
once took several experienced operators with numerous rotary evaporators (rotovaps) hours, can now be
accomplished in a fraction of the time. With a 16,000 watts heating mantle and a matching high cooling capacity,
the EcoChyll® X9 comprehensively exceeds the performance of up to eight 50 liter traditional rotovaps.

Features :

• Available in 100L and 200L
• Exceeds the performance of eight 50L traditional rotary evaporators
• Recovers all residual solvents (below 500ppm)
• Designed to handle an extremely wide range of solvents, including water and all common solvents used in the cannabis and hemp industries

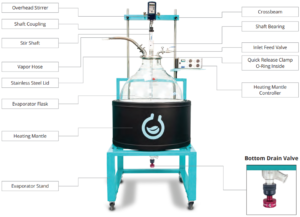

• No need to move glassware: The stationary evaporation flask is filled with a siphon feed valve and emptied with a drain valve for uninterrupted operation
• Spacious evaporation flask prevents “bumping” of solution into condensation unit
• Can be incorporated in-line with botanical extraction or winterization systems and fully automated
• Digital interfaces and data monitoring for stirring rod, vacuum pump, chiller, and heating mantle

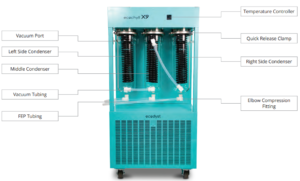

• Patented EcoChyll condensation unit reaches -40°C on the coils in under one minute
• Single user operation with minimal interference required
• Capable of evaporating ethanol at low temperatures (38C)
• Extremely energy efficient
• Safety features for automatic shutdown
