MODEL: EOLO
The EOLO digital air jet sieve shaker has been specially designed for dry granulometric testing, for fine particles from 5 microns in size (from 0.005 to 4 mm).

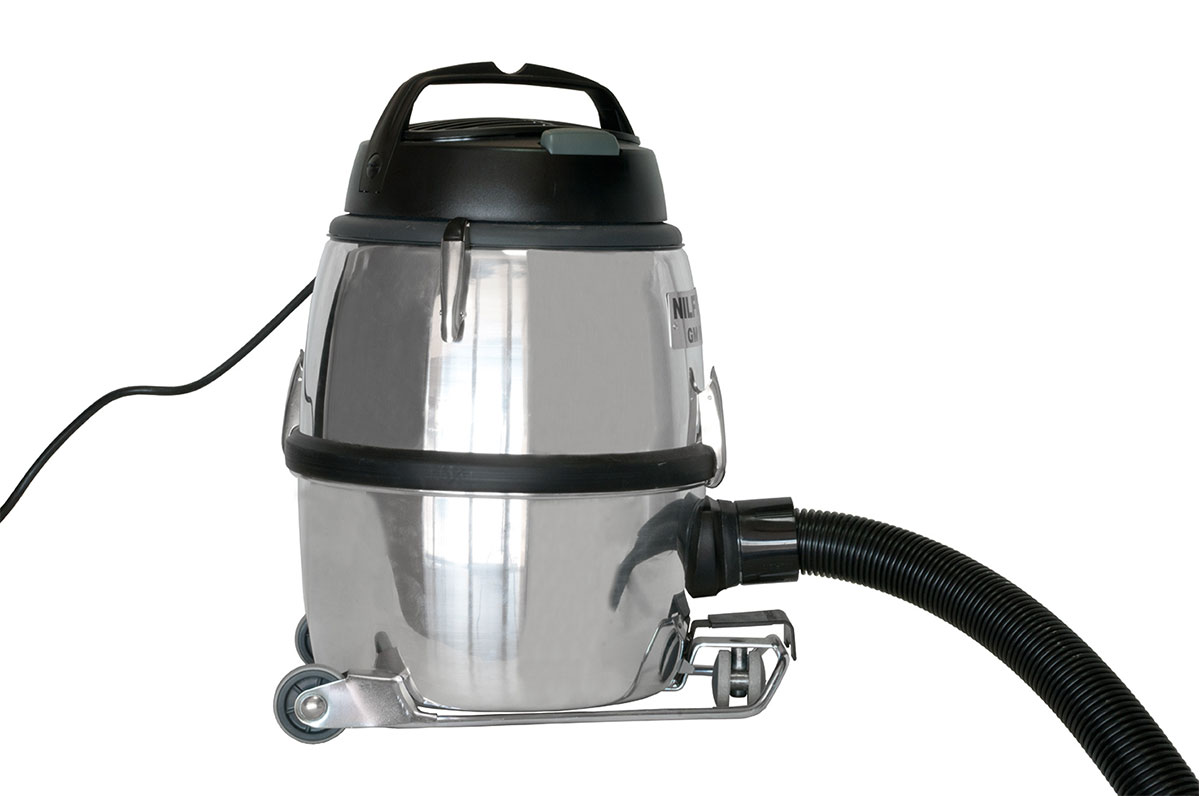

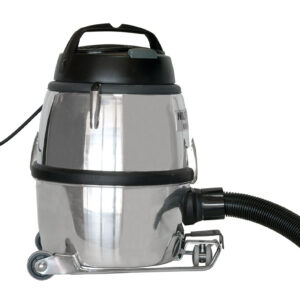

It offers fast, effective sieving thanks to the flow of the product obtained forced by a current of air which forces the particles through the sieve. This effect is obtained using an industrial vacuum which maintains constant depression.
It features a digital panel with sieving time regulation (1 to 99 minutes) and Vacuum Meter, which incorporates a depression regulator valve in order to select the necessary depression for each test.
The sieve shaker includes a methacrylate lid which allows the product behaviour to be observed, and a nylon mallet to loosen the residual product which is stuck to the lid due to the effects of static electricity.

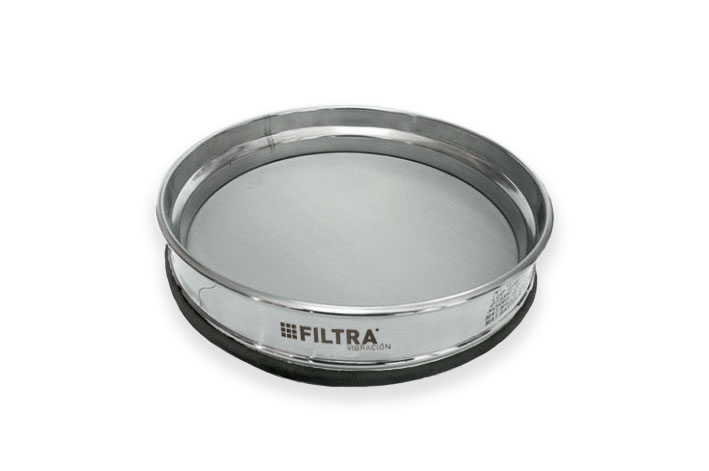

The use of FILTRA quality Air Jet sieves of Ø200 mm (not included) is recommended.
Benefits:
- Highly effective in the sieving of fine particles: very short sieving times.
- Dry sieving.
- Ergonomic design.
- Digital adjustment of sieving parameters.
- Easy to operate.
- Integrated interface.
- Silent
- Maintenance free
Technical Specifications:
| Parameter | Nilai |
|---|---|
| Sieve Shaker Type | Air Jet |
| Dry test | Yes |
| Wet test | No |
| Particle Size | 5 µm – 4 mm |
| Number of sieves | 1 |
| Diameter of sieves | Ø 200 mm |
| Timer | 1 – 99 minute |
| Tension | 220/240 V – 50/60 Hz |
| Power | 0,19 kW |
| Maximum depression | 20 kPa |
| Weight | 20 kg |
| Dimensions (Ø x T) | 410 x 360 x 362 mm |

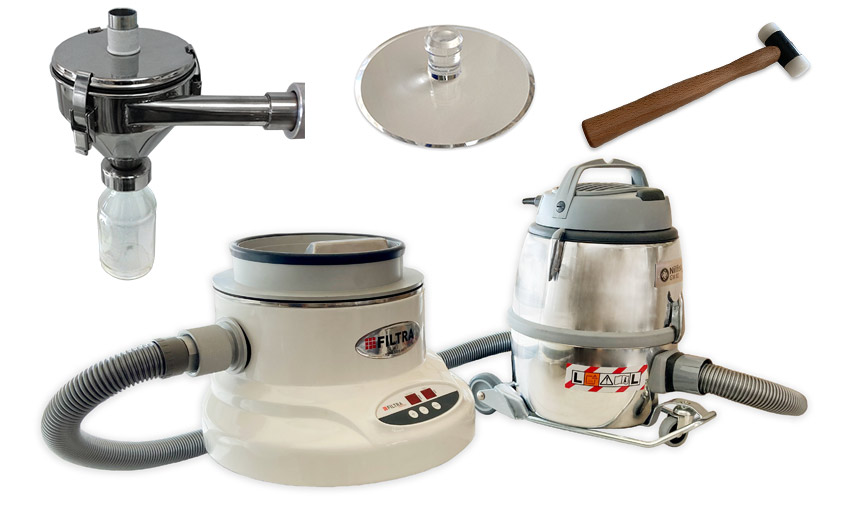

Include:
- Air Jet sieve shaker
- Connecting cable
- Methacrylate lid
- Nylon hammer
- User manual
- CE declaration of conformity
