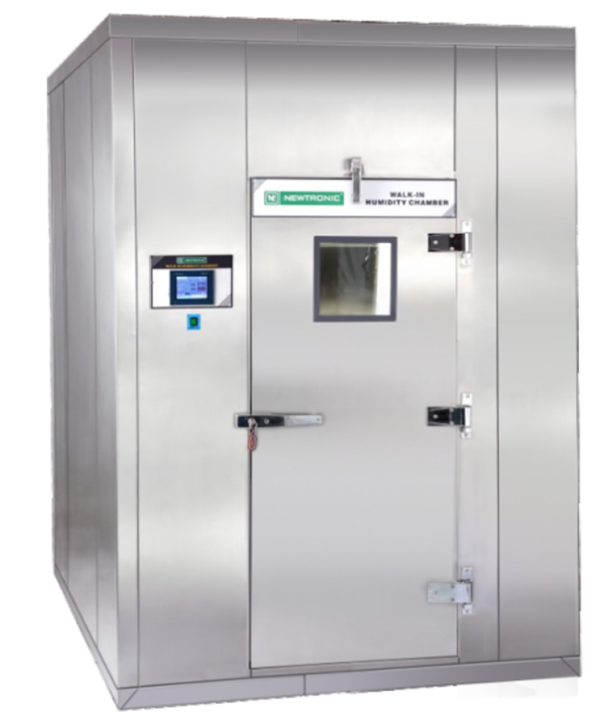

ECOTRONIC WALK-IN HUMIDITY STABILITY CHAMBERS – NEWTRONIC

Origin: India

Brand:

Category: Tags: , ,
Tags: , ,

The ECOTRONIC walk-in humidity stability chambers are designed with advanced technology utilizing the principles of dew point control as per the Psychrometric Chart. This is an ideal solution for testing and maintaining humidity conditions in industries such as pharmaceuticals, food, and cosmetics.

ECOTRONIC WALK-IN HUMIDITY STABILITY CHAMBERS – NEWTRONIC



Model: NLWH Series

Manufacturer: Newtronic

Origin: India



Standard Features

  • Operates on the Ecotronic system with energy-efficient green technology.
  • Double-walled 60mm PUF insulated panels for easy on-site assembly.
  • SS 304 interior and exterior or pre-coated GI panels.
  • Stainless steel trays.
  • Observation window (300 x 300 mm).
  • PVC strip curtain to reduce temperature leakage.
  • Illuminated working area for better visibility.
  • Linoleum flooring for slip resistance.
  • Heater along the door to avoid condensation.
  • U-shaped stainless steel tubular heaters.
  • Forced air circulation for uniform temperature.
  • CFC-free cooling system for eco-friendly operation.
  • PLC-based operations with data logging capacity of up to 1,000 readings.
  • High-speed Ethernet communication.
  • 4-inch color touchscreen.
  • High-quality imported T/RH combo sensors with 4-20 mA output.
  • Audio/visual alarms for deviations.



Technical Specifications

  • Temperature Range: 20°C to 60°C.
  • Temperature Accuracy: ± 0.5°C.
  • Temperature Uniformity: ± 1°C.
  • Humidity Range: 40% RH to 95% RH.
  • Humidity Accuracy: ± 2% RH.
  • Humidity Uniformity: ± 3% RH.



Optional Accessories

  1. ICDAS software.
  2. 8-point temperature and humidity scanner.
  3. Automatic cooling system for chambers above 430 liters.
  4. Numeric or biometric door access system.
  5. Remote alarm system for up to 4 devices.
  6. Mobile alert system.



Selection Guide

Model Capacity Internal Size External Size Tray Size Tray Quantity Weight
NLWH208SI 5,848 liters 2000 x 1360 x 2150 mm 2120 x 1480 x 2270 mm 900 x 300 mm 20 On request
NLWH250SI 7,017 liters 2400 x 1360 x 2150 mm 2520 x 1480 x 2270 mm 900 x 300 mm 28 On request
NLWH307SU 8,600 liters 2000 x 2000 x 2150 mm 2120 x 2120 x 2270 mm 900 x 600 mm 28 On request
NLWH368SU 10,320 liters 2400 x 2000 x 2150 mm 2520 x 2120 x 2270 mm 900 x 600 mm 28 On request
NLWH453SU 15,216 liters 2400 x 2000 x 3170 mm 2520 x 2120 x 3290 mm 900 x 600 mm 42 On request
NLWH1092SU 30,600 liters 2400 x 2500 x 5100 mm 2520 x 2620 x 5220 mm 900 x 800 mm 70 On request
NLWH2857SU 80,019 liters 3000 x 5100 x 5230 mm 3120 x 5220 x 5350 mm 900 x 800 mm 162 On request



* Custom dimensions are available upon request.
