No other top down X-ray system on the market offers such a robust set of standard features coupled with high performance options typically only available on machines costing thousands more.

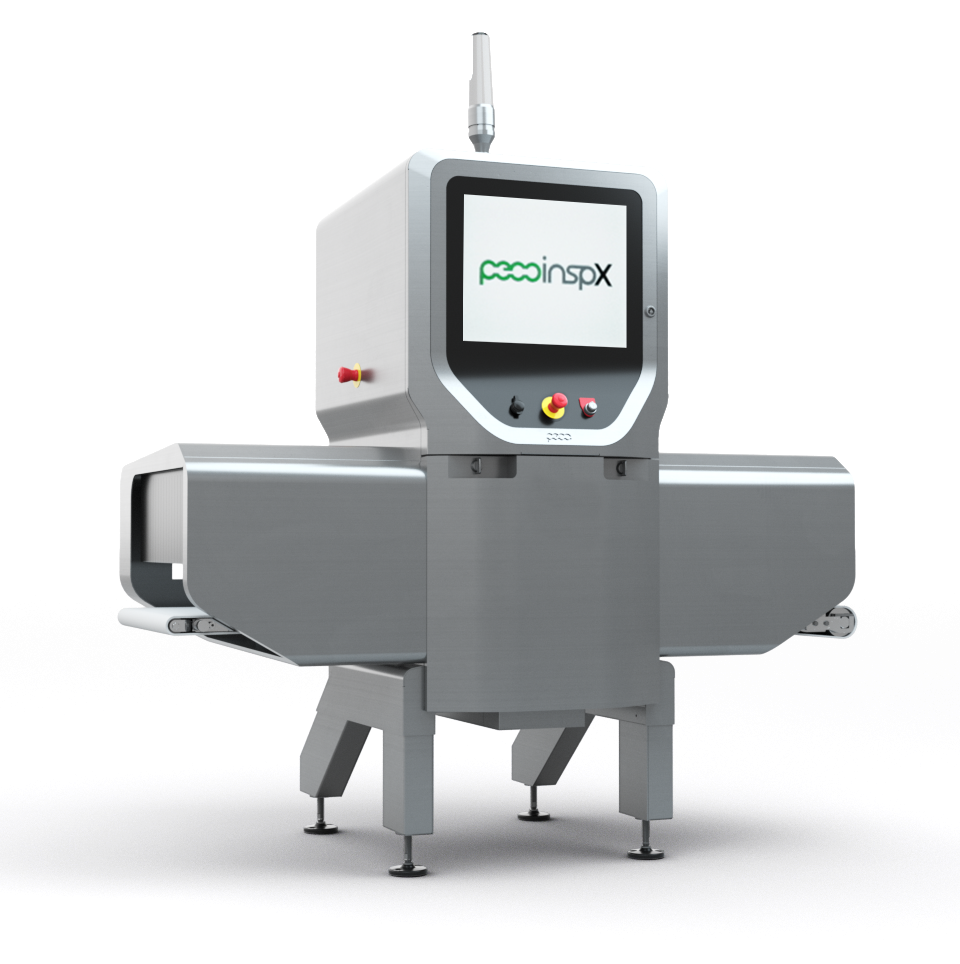

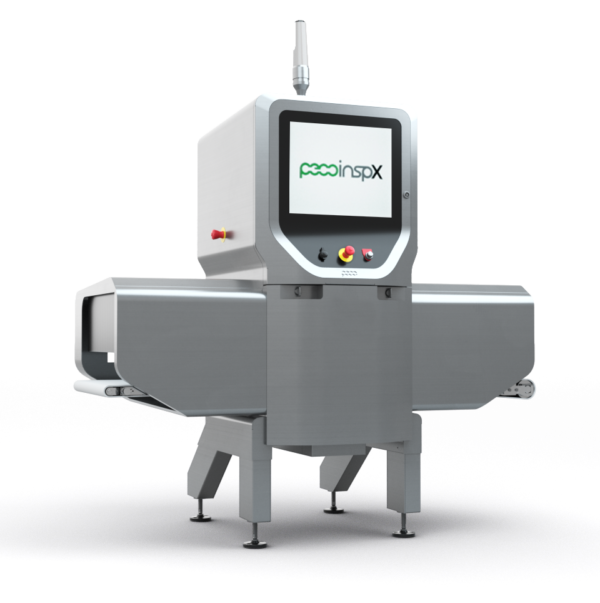

The Allegro Wide is also inexpensive and straightforward to maintain. Superior Peco InspX service ensures that you’ll have access to immediate support 24×7 and convenient local service when you need it. Because the Allegro Wide is designed for reliable operation, you’ll be pleased with its low cost of ownership.
FEATURES
- Modular Design – All subsystems have been designed with the maximum system availability, redundancy, and fault tolerance in mind
- Conveyor Drive – Remotely controlled Powerflex 525-based variable frequency drive and sealed sanitary rollers
- Real-Time Remote Support – Integrated wireless connectivity allows for secure remote support 24/7 globally. Peco InspX can resolve over 95% of customer issues with our powerful remote diagnostics software
- Robust IT Security – Fully integrated end-to-end IT security offerings ensure your networks aren’t vulnerable and are defended from any outside threats. Optional IoT module allows for seamless SCADA integration
- No Requirement for Container Spacing – This inspection geometry does not require any container spacing between adjacent containers
- High Performance Generator – Features a high-powered X-ray generator designed for continuous duty-cycle operation and no maintenance
TYPICAL APPLICATIONS
- Plastic, Paper & Foil Pouches
- Bulk or Loose Ingridients
- Low Profile Packages & Trays
- Cases of Produc & Blocks
TECHNICAL INFORMATION
| Category | Specification |
|---|---|
| Architecture | Top down X-ray system |
| Conveyor | Integrated conveyor with built-in drive and controls |
| X-ray Tube Configuration | High reliability integrated X-ray generator |
| Aperture Size | Max Width: 30 in (762 mm)Max Height: 10 in (254 mm) |
| Environment | Standard: IP 66 / NEMA 4XOptional: IP 69K, Passivation |
| Line Speed | Up to 436 ft/min (133 m/min) |
| Input Voltage | Available in 120 or 240 VAC options |
| Air Supply | 80 psi @ 5 cfm (for ejection only) |
| Ambient Temperature | 33°F – 113°F (1°C – 45°C) |
| Air Conditioning | Standard |
| Diode Size | Configurable to 0.8 mm, 0.4 mm, and 0.2 mm |
| Container Ejection | Full range of high-speed ejection and diversion options available |
| Dimensions (LxDxH) | 72 x 55 x 84 in (1,752 x 1,395 x 2,133 mm) |
| Safety Rating | Redundant – Category 4, Performance Level E |
| Computer | Solid State Industrial PC with Windows 10 and integrated AV |
| Connectivity | Integrated WiFi, Ethernet or Cellular Connection |
| Supported SCADA Systems | Ignition, Wonderware, FactoryTalk, Kepware, and other OPC-UA compliant systems |
| Supported Cloud Platforms | Azure IoT Hub, AWS, and Google Cloud via MQTT |
| Operator Interface | 17″ touchscreen |
| Construction | Standard: 304 Stainless SteelOptional: 316L / Passivated |
OPTIONS
Industrial IoT Capabilities
Peco InspX offers industry leading plant connectivity and remote control including:
- SCADA integration via OPC-UA protocol into Ignition, Wonderware, FactoryTalk, Kepware and all other popular integrated software platforms
- Native support for Azure, AWS, and Google Cloud via MQTT
- Real time system and performance monitoring of each machine
- Insight into operational performance bottlenecks
- Automatic archiving and classification of reject images
- Optional archiving of all inspection images
Reject Management Package
Reject Management Package include secure options:
- Lockable reject bin to ensure authorized access to rejected packages
- Sensors to ensure positive confirmation on expected rejects
- Sensors to alert on “bin full” condition
- Air pressure sensor to alert for any out-of-range air supply problems
- Optional software-controlled lock for user configurable access
Full Range of Ejection Options
Peco InspX designs and manufactures a wide range of high-performance ejectors and diverters to include single solonoid, multiple solonoid, swing arm, lift gate, drop gate, air blast, flexible rail, guided path, and heavy-duty options
RFID Access Control
Support automatic system authentication using customer ID badges. Supports a wide range of standard access protocol frequencies
Remote Operator Console
The remote operator console provides complete system monitoring and control up to 6 meters from the system inspection assembly
Sanitary Design
Can be equipped with an IP69K enclosure for high pressure wash down environments
