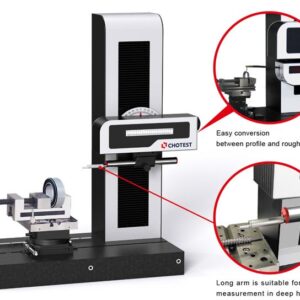

Functions 1. Surface contour evaluation: It can evaluate radius, angle, distance, coordinates, circle, circular cross section, and determine the points, each intersectant point, coordinate axis, straight line, vertical line, circle and circular cross section, and analyze the straightness, roundness of contour; More functions: (1)Establish a regression line and a circle (2)Establish the points, intersectant points, free...

Application                                            Lens                                                            Intraocular lens mold ...

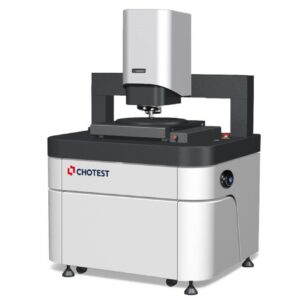

Description SuperView W5 is mainly used for high-precision measurement of surface roughness and waviness of irregular workpieces. Equipping a 5-axis object table(X/Y/Z axis, tilt & rotation), it can achieve rapid positioning throng imported 3D model. Then the measurement head can automatically scan the specified position and software obtains test data including 2D/3D topography, roughness, waviness,...

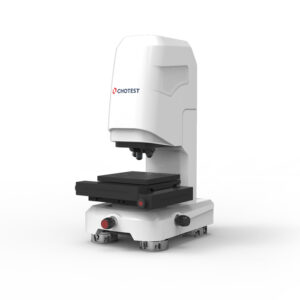

The Hybrid 3D optical profilometer Superview WT series is used for sub nanometer measurement of surfaces of various precision components and materials. It integrates the performance characteristics of two high-precision 3D measuring instruments, white light interferometer and confocal microscope, and can perform non-contact scanning of the samples surface then re-establish 3D surface image. When measuring...
