Functions
1. Once Scanning for both Profile and Roughness parameters such as Ra and Pt
2. Surface roughness: R parameter, P parameter, W parameter, etc.
3. Surface profile evaluation: It can evaluate radius, angle, distance, coordinates, circle, circular cross section, and determine the points, each intersectant point, coordinate axis, straight line, vertical line, circle and circular cross section, and analyze the straightness, roundness of contour
4. Shape error measurement: aspheric shape error measurement, straight line shape error measurement, camber shape error measurement
5. CNC Automatic mode is supported;
6. SPC statistics and analysis are supported
7. Support to import CAD file
8. Can export test data to the Word, Excel, AutoCAD(Optional)
9. Output multiple kinds of report format, and support user-defined report, or customize report(optional)
10. Can search and manage the test records according to object type, manufacturer, manufacturing number, inspector, submitted institution, equipment number, inspection date or effective date etc.
2. Surface roughness: R parameter, P parameter, W parameter, etc.
3. Surface profile evaluation: It can evaluate radius, angle, distance, coordinates, circle, circular cross section, and determine the points, each intersectant point, coordinate axis, straight line, vertical line, circle and circular cross section, and analyze the straightness, roundness of contour
4. Shape error measurement: aspheric shape error measurement, straight line shape error measurement, camber shape error measurement
5. CNC Automatic mode is supported;
6. SPC statistics and analysis are supported
7. Support to import CAD file
8. Can export test data to the Word, Excel, AutoCAD(Optional)
9. Output multiple kinds of report format, and support user-defined report, or customize report(optional)
10. Can search and manage the test records according to object type, manufacturer, manufacturing number, inspector, submitted institution, equipment number, inspection date or effective date etc.
Parameters
| Model No. | SJ5730-100 | ||
| Profile Measurement |
Measuring Range | X | 0~100mm |
| Z | 0~300mm | ||
| Z1 | ±6mm（Optional: ±12mm） | ||
| Resolution | 0.001um | ||
| Accuracy | Z1 *1 | ≤±（0.5+0.03 H）μm（H，mm） | |
| Pt *2 | Pt≤0.4μm | ||
| Standard Ball *3 | ≤±1μm（R≤10mm） ; ≤±（0.17+R/12）μm（10﹤R≤200mm） | ||
| Angle *4 | ≤±1′ | ||
| Moving Speed |
X | 0~20mm/s | |
| Z | 0~20mm/s | ||
| Scanning Speed | 0.05~5mm/s | ||
| X Straightness *5 | ≤0.2μm/100mm | ||
| Measuring Force | 0.5mN,0.75mN,1mN,2mN,3mN(Adjustable) | ||
| Roughness Measurement |
Ra Masurement Range | Ra0.012μm~Ra12.5μm | |
| Accuracy *6 | Ra0.012μm ~ Ra3 . 2 μm: ≤±(3nm+2.0%A),A(Ra)μm Ra3.201μm ~ Ra12.5μm : ≤±(3nm+3.5%A),A(Ra)μm |
||
| Repeatability (1δ) *7 | 1δ≤1nm | ||
| Measurement Residual *8 | Rq≤3nm | ||
| Roughness Parameters | R roughness: Rp, Rv, Rz, Rc, Rt, Ra, Rq, Rsk, Rku, RSm, RPc, Rdq, Rdc, Rmr, Rmax, Rpm, tp, Htp, Pc, Rda, Ry, Sm, S, Rpq, Rvq, Rmq, RzJ, Rv1max, Rp1max, Rz1max, Rmr(Rz/4), maxRa, R5z, R3z, Rh, Dq, Lq, SD Key roughness: Rcore: Rk, Rpk, Rvk, Mr1, Mr2, A1, A2 Profile: Pa, Pq, Pt, Pz, Pp, Pv, PSm, Psk, Pku, Pdq, Pdc, Pc, PPc, Pvq, Pmr, Pmq, Rad, PzJ, Pmax, StpHt, TIR, Avg, Slope, Area+, Area-, Area, Profl, Edge, StpWd, Bumpht Waviness of profile: Wa, Wq, Wt, Wz, Wp, Wv, WSm, Wsk, Wku, Wdq, Wdc, Wmr, Wpc, Wc, Wh, Wmr(WZ/4) Motif: R, AR, W, AW, Rx, Wx, Wte, Nr, Ncrx, Nw, Cpm, CR, CF, CL ISO5436: Pt5436, D |
||
| Filter | Gaussian filter, 2RC filter, zero phase filter | ||
| Sampling Length | 0.008, 0.08, 0.25, 0.8, 2.5, 8.0 or 25mm Selectable | ||
| Evaluation Length | Auto calculation | ||
| Roller Analysis | Roller convexity, position distance, logarithmic roller busbar, X-mirror curve coincidence, segmented different tolerances |
||
| Input | AC100-240V, 50/60Hz, 130W | ||
| Size(L×W×H) | 600×350×890mm | ||
| Weight | 110kg | ||
| *1 The accuracy is based on the measurement standard gauge block. *2 The accuracy is based on the Pt test of standard ball smaller than diameter 25mm. *3 The accuracy is based on the verifcation of the ф 50mm standard ball with the arc exceeds 90 degrees. *4 The accuracy is based on the measurement of the angle of polygonal prism. *5 The accuracy is based on the measurement of optical flat. *6 The accuracy is based on the measurement of standard roughness block. *7 The repeatability is based on the measurement of 0,1-0.2μm square wave roughness block and standard step height block. *8 The accuracy is is based on the measurement of 1 nm level roughness block and optical flat. |
|||
Features
1. Once Scanning for both Profile and Roughness
2. High precision, high stability, high repeatability:
2. Intelligent measurement software
Thanks to friendly software interface, the operator can grasp the basic operation of the machine.
4. Intelligent protection system
Once the measuring probe collides with test object / workholder, or tensile force to measuring probe is too large during scanning process, the machine will stop scanning in order to protect measuring probe and measuring system.
5. Flexible manual control
The machine is equipped with a portable joystick, which can be used to position the probe before measurement. The operator can control the measuring probe to move up and down, left and right quickly without the computer.
Applications

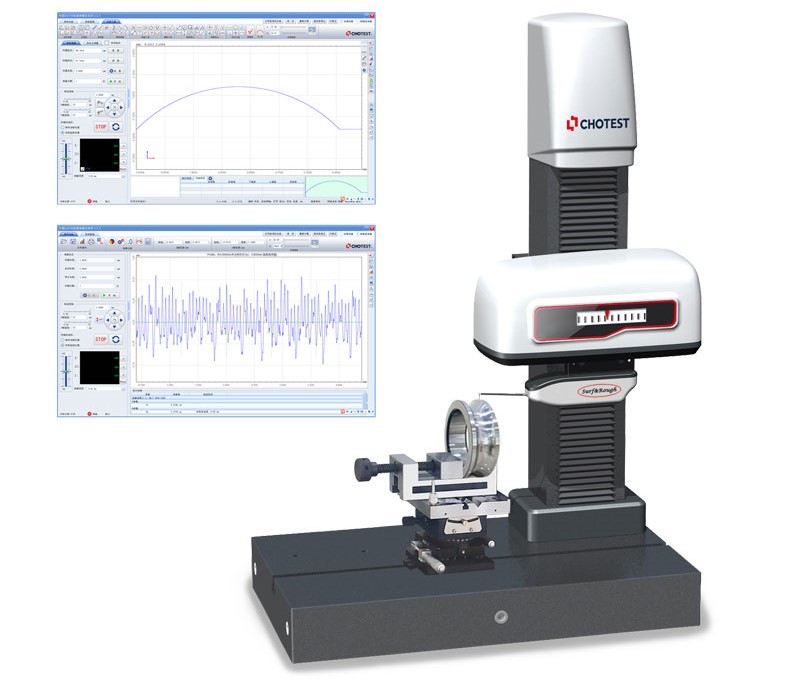

Scanning curve of Profile
Configuration
Standard configuration:
1. Host machine including profile&roughness measurement module
2. Calibration gauge for profile 3. Measuring arm L85-ZMY15 4. Measuring arm L85-RMY15 5. Jaw vice 6. Object table 7. Portable joystick 8. Measuring software 9. Desktop computer and 24” monitor 10. Aluminium alloy suitcase for accessories 11. User manual 12. Product certification and Warranty card
Package
